Flow line map

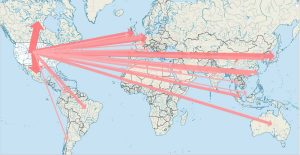

A flow line map is a type of thematic map used in geography and cartography to represent the movement of goods, people, information, or other phenomena between different geographical locations. It uses lines of varying width to indicate the volume or intensity of flow along a route, providing a visual depiction of spatial interaction and movement patterns across regions. Flow line maps are particularly useful in human and economic geography for illustrating migration, trade, traffic, energy distribution, or communication networks.

Concept and Definition

A flow line map visually expresses the spatial movement of phenomena from one place to another over a given period. The map’s defining feature is the flow line, a line drawn between two points—an origin and a destination—whose thickness is proportional to the magnitude of the flow.
Key characteristics include:

• Direction: Indicates the path or route of movement.
• Width: Represents the quantity or volume of flow.
• Origin and destination: Show the starting and ending points of movement.
• Proportional representation: Wider lines indicate larger flows, while thinner lines signify smaller flows.

Flow line maps are designed to emphasise interaction and connectivity rather than spatial boundaries, helping to reveal patterns of movement that link regions and influence spatial organisation.

Types of Flow Line Maps

Flow line maps can be classified into several types based on their design and purpose:

1. Straight Line Flow Maps:
   • Connect origin and destination directly using straight lines.
   • Commonly used for global or intercontinental patterns, such as international trade or airline routes.
2. Curved Flow Maps:
   • Use curved or arched lines to represent flow more naturally across large surfaces, avoiding clutter and overlap.
   • Suitable for representing global air traffic or shipping routes along curved latitudinal paths.
3. Distributive Flow Maps:
   • Show the distribution of a phenomenon from a single source to multiple destinations (or vice versa).
   • Example: oil exports from the Middle East to various world regions.
4. Network Flow Maps:
   • Depict complex systems of movement between multiple nodes connected by a network, such as railways, pipelines, or telecommunication systems.
5. Qualitative Flow Maps:
   • Show only the direction or nature of movement (without quantitative representation).
   • Example: migration routes or historical trade paths.
6. Quantitative Flow Maps:
   • Represent measurable data where the width of lines corresponds precisely to numerical values (e.g., tonnes of goods transported or number of migrants).

Components and Design Elements

Effective flow line maps depend on careful visual design and data representation. Essential components include:

• Base Map: Provides the geographical framework (countries, cities, or regions).
• Flow Lines: Represent the actual movement; they can be coloured, graduated, or patterned.
• Proportional Scaling: Ensures the width of each line accurately reflects the magnitude of the data.
• Directional Arrows: Indicate the direction of flow when necessary.
• Legend and Key: Explain what the flow lines represent and the scale used.
• Colour Coding: Can be used to distinguish between different types of movement (e.g., imports vs. exports).

Cartographers often use graduated symbols and smoothing techniques to avoid overcrowding and to make large datasets legible.

Construction and Methodology

Creating a flow line map typically involves several steps:

1. Data Collection:
   • Gather statistical data showing quantities moved between locations, such as trade volumes, migration figures, or passenger numbers.
2. Data Classification:
   • Group the data into classes or ranges (e.g., low, medium, high flow).
3. Proportional Representation:
   • Determine a suitable scale to convert quantitative values into line thickness.
4. Line Drawing:
   • Draw flow lines between relevant points, adjusting width according to data magnitude.
5. Design Refinement:
   • Simplify overlapping lines, adjust colour schemes, and ensure geographical accuracy and visual clarity.

Modern Geographical Information Systems (GIS) allow digital creation of flow maps with dynamic scaling, animation, and interactive data exploration.

Examples of Flow Line Maps

Flow line maps are used across various fields of geography and related disciplines:

• Migration maps: Showing population movements between countries or regions, such as rural-to-urban migration or international refugee flows.
• Trade maps: Depicting exports and imports between nations, such as global oil, food, or manufactured goods trade.
• Transport and communication maps: Illustrating air routes, shipping lanes, railway networks, or data transmission paths.
• River flow maps: Representing the direction and discharge volume of rivers or drainage systems.
• Energy flow maps: Showing pipelines carrying natural gas, crude oil, or electricity transmission routes.

For example, a world trade flow map might use thick arrows from China to North America and Europe to indicate the large volume of exported manufactured goods, while thinner lines might represent smaller trade connections.

Advantages of Flow Line Maps

Flow line maps provide several advantages for geographic analysis and communication:

• Visual clarity: They simplify complex movement patterns into an easily interpretable visual form.
• Quantitative accuracy: When properly scaled, they offer a clear sense of proportional relationships.
• Comparative value: Allow direct comparison between different routes or flows.
• Dynamic insight: Highlight regional interdependence and spatial organisation through interaction networks.
• Flexibility: Applicable to both physical (e.g., water, wind) and human (e.g., trade, migration) phenomena.

Limitations

While effective in representing spatial flows, flow line maps also have limitations:

• Overcrowding: Dense networks can become cluttered, especially at small scales or with numerous data points.
• Generalisation: Lines may oversimplify routes, especially over long distances or in irregular terrain.
• Scale distortion: On world maps, projection and curvature can distort the true direction or distance of flows.
• Data dependency: Require accurate and compatible quantitative data for meaningful representation.
• Directional ambiguity: Without clear arrows, the direction of flow can be misinterpreted.

To overcome these challenges, cartographers often employ simplified schematics, interactive mapping, or regional focus maps for detailed analysis.

Applications in Geography and Related Fields

Flow line maps are extensively used in:

• Economic geography: To illustrate trade balances, transport systems, and industrial linkages.
• Population geography: To study migration, urbanisation, and commuting patterns.
• Environmental geography: To track water cycles, pollution dispersion, and energy flow systems.
• Transportation studies: For route optimisation and traffic flow management.
• Historical geography: To trace exploration routes, diffusion of innovations, or colonial trade networks.

In education, such maps provide students with a clear, visual understanding of global interconnections, making them an invaluable teaching aid.

Modern Developments and Technological Integration

With advances in GIS, remote sensing, and data visualisation software, modern flow line maps have evolved into sophisticated analytical tools. Digital flow mapping enables:

• Interactive and animated maps showing time-based changes (e.g., seasonal migration).
• Three-dimensional flow models to represent vertical movements such as atmospheric circulation or ocean currents.
• Integration with statistical databases, allowing real-time visualisation of trade, traffic, or communication networks.

Software such as ArcGIS, QGIS, and Tableau now facilitate automated generation of flow line maps from large datasets, enhancing accuracy and accessibility.

Significance in Spatial Analysis

Flow line maps are vital for understanding spatial interaction—how people, goods, and information move between places and how these movements shape geographical patterns. They reveal relationships beyond static boundaries, illustrating processes of globalisation, regional interdependence, and economic integration.
In planning and policy-making, flow maps help identify transport bottlenecks, trade imbalances, and migration pressures, enabling evidence-based decisions in infrastructure, trade, and environmental management.
