Computer port

A computer port is a hardware interface or connection point through which a computer communicates with external devices or peripherals. Ports serve as entry and exit points for data transfer, allowing the computer to send or receive information to and from other systems, storage devices, display units, input devices, and networks.
Ports can be either physical (tangible connectors on the computer) or virtual/logical (software-defined communication endpoints used in networking). They are essential for facilitating the interaction between a computer’s internal components and the external world.

Types of Computer Ports

Computer ports are broadly classified into two main categories:

1. Hardware (Physical) Ports – Found on the computer’s motherboard or chassis, these connect hardware devices like printers, monitors, and keyboards.
2. Software (Logical) Ports – Used in networking to manage internet and local communications between programs or devices.

I. Hardware (Physical) Ports

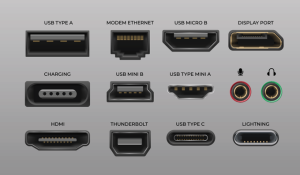

Physical ports are the tangible sockets or plugs located on the back or sides of computers, laptops, and other electronic devices. They are designed for input/output operations and can be classified based on their function and data transfer type.

1. Serial Port

• One of the earliest computer communication ports.
• Transfers data one bit at a time over a single communication line.
• Typically used to connect older modems, mice, or serial interface devices.
• Uses DB-9 or DB-25 connectors.
• Transmission speed: up to 115 Kbps.

2. Parallel Port

• Transfers multiple bits simultaneously through multiple wires.
• Commonly used in older systems for connecting printers and scanners.
• Identified as DB-25 female connector on the computer.
• Faster than serial ports but largely obsolete due to USB technology.

3. USB (Universal Serial Bus) Port

• The most widely used port for connecting modern peripherals.
• Supports plug and play functionality and hot swapping.
• Used for connecting keyboards, mice, pen drives, external hard drives, and cameras.
• Various versions:
  • USB 1.1: 12 Mbps
  • USB 2.0: 480 Mbps
  • USB 3.0: 5 Gbps (SuperSpeed)
  • USB 3.1/3.2: Up to 20 Gbps
  • USB4 / USB-C: Up to 40 Gbps, reversible connector supporting data, power, and video.

4. PS/2 Port

• Introduced by IBM for connecting a keyboard (purple) and mouse (green).
• 6-pin mini-DIN connector.
• Now mostly replaced by USB interfaces in modern computers.

5. VGA (Video Graphics Array) Port

• 15-pin connector used for transmitting analogue video signals to monitors and projectors.
• Gradually being replaced by digital alternatives such as HDMI and DisplayPort.

6. DVI (Digital Visual Interface) Port

• Transmits digital or analogue video signals from the computer to display devices.
• Provides higher image quality than VGA.
• Common in older flat-panel monitors.

7. HDMI (High-Definition Multimedia Interface) Port

• Carries both digital video and audio signals through a single cable.
• Widely used for connecting monitors, TVs, and projectors.
• Supports high-definition and 4K resolution displays.
• Compact versions include Mini HDMI and Micro HDMI for portable devices.

8. DisplayPort

• A digital display interface designed to replace VGA and DVI.
• Supports high-definition video and multi-channel audio.
• Also used in laptops, desktops, and graphics cards for multiple display setups.

9. Ethernet (RJ-45) Port

• Used to connect computers to wired Local Area Networks (LANs) or the internet.
• Employs an RJ-45 connector and supports data rates of 10 Mbps, 100 Mbps (Fast Ethernet), 1 Gbps (Gigabit Ethernet), and beyond.

10. Audio Ports

• Allow connection of sound input/output devices such as microphones, speakers, and headphones.
• Common colour coding (on PCs):
  • Green: Speaker or headphone output
  • Pink: Microphone input
  • Blue: Line-in audio input

11. FireWire (IEEE 1394) Port

• Developed by Apple for high-speed data transfer.
• Commonly used for connecting digital cameras and external storage devices.
• Transfer speed ranges from 400 Mbps (IEEE 1394a) to 800 Mbps (IEEE 1394b).

12. Thunderbolt Port

• High-speed interface developed by Intel in collaboration with Apple.
• Combines data, power, and video transmission in one port.
• Thunderbolt 3 and 4 use the USB-C connector and offer speeds up to 40 Gbps.

13. eSATA Port (External SATA):

• Used to connect external hard drives with high data transfer speed (up to 6 Gbps).
• Offers better performance than USB 2.0 for storage devices.

14. Power Port:

• Dedicated port for connecting the computer to a power supply unit (PSU) or adapter.
• Found in laptops and desktops with specific voltage ratings.

II. Software (Logical) Ports

In computer networking, a software or network port is a virtual communication endpoint used by protocols to exchange data between applications over the Internet or a local network.
Each port is identified by a unique number (port number) assigned by the Internet Assigned Numbers Authority (IANA).

Categories of Network Ports

1. Well-Known Ports (0–1023): Reserved for common network services and protocols.Examples:

• Port 20 & 21: File Transfer Protocol (FTP)
• Port 22: Secure Shell (SSH)
• Port 23: Telnet
• Port 25: Simple Mail Transfer Protocol (SMTP)
• Port 53: Domain Name System (DNS)
• Port 80: Hypertext Transfer Protocol (HTTP)
• Port 443: HTTPS (Secure Web Communication)

2. Registered Ports (1024–49151): Assigned to user applications or services.Examples:

• Port 3306: MySQL database
• Port 3389: Remote Desktop Protocol (RDP)
• Port 8080: Alternate HTTP service

3. Dynamic or Private Ports (49152–65535): Used temporarily by client applications for internal or outbound communication.

Importance of Ports in Computing

• Data Communication: Facilitate the transfer of data between internal components and external devices.
• Peripheral Integration: Enable connection of hardware such as printers, storage drives, and displays.
• Networking: Allow internet-based communication and application-level interactions.
• System Security: Network ports can be monitored or closed to prevent unauthorised access or cyberattacks.
• Interoperability: Standardised ports ensure compatibility between devices and software across platforms.

Security and Management of Ports

While ports are essential for connectivity, they can also be exploited for cyber intrusions if left unsecured.Common security measures include:

• Firewalls: Block or filter unwanted network traffic on specific ports.
• Port Scanning: Used to detect open or vulnerable ports on a system.
• Encryption and Authentication: Protect data transmitted through open ports.
• Regular Updates: Ensuring software and firmware are updated to close known vulnerabilities.
