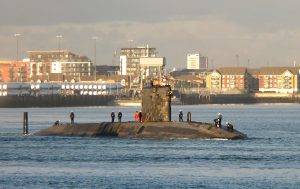

Trafalgar Class Submarine

The Trafalgar-class submarines were nuclear-powered fleet submarines that served as a central component of the Royal Navy’s hunter-killer submarine force during the late twentieth and early twenty-first centuries. Developed during the Cold War as an advanced refinement of earlier designs, these submarines combined improvements in stealth, propulsion and weapons capability, and they featured prominently in several major British naval operations. A total of seven vessels were constructed, all by Vickers Shipbuilding and Engineering in Barrow-in-Furness, and the class has since been replaced by the more advanced Astute-class submarines. The name of the class commemorates the historic Battle of Trafalgar of 1805.

Development

Design work on the Trafalgar class began in the early 1970s, following the operational success of the Swiftsure-class submarines. The new class incorporated much of the earlier design philosophy but offered significant improvements in acoustic quieting, endurance and weapons capacity. They were the fifth class of nuclear-powered fleet submarines to join Royal Navy service.
The first boat, HMS Trafalgar, was ordered in 1977 and entered service in 1983. Subsequent vessels followed throughout the 1980s, with the final unit, HMS Triumph, completed in 1991. Costs recorded in Jane’s Fighting Ships noted an estimated £175 million for one of the early boats, rising to an average of £200 million by the mid-1980s.
During the late 1980s, Canada examined the possibility of purchasing Trafalgar-class or similar nuclear submarines under a technology-transfer arrangement. This proposal, intended to support a three-ocean navy and enhance Arctic capability, was abandoned in 1989 owing to budget constraints.

Operational Service

The Trafalgar-class submarines were deployed worldwide and saw extensive operational use. They were particularly notable for their employment of land-attack cruise missiles.

• Operation Veritas (2001): HMS Trafalgar became the first Royal Navy submarine to launch Tomahawk missiles against targets in Afghanistan following the September 11 attacks.
• Operation Telic (2003): HMS Turbulent launched thirty Tomahawk missiles during the invasion of Iraq, returning to port flying the traditional Jolly Roger emblem used by submarines after successful operations.
• Operation Ellamy (2011): HMS Triumph executed multiple missile strikes against Libyan air-defence infrastructure between 19 and 24 March before returning to Devonport displaying symbols denoting the six missiles fired.

Other deployments included HMS Triumph’s 1993 voyage to Australia, conducted entirely submerged and without forward support, recognised as the longest solo deployment by a British nuclear submarine as of 2011.

Service Problems

Despite their strengths, the class experienced several technical challenges. In 1998, HMS Trenchant suffered a steam leak that required shutting down the nuclear reactor. In 2000, HMS Tireless developed a leak in the primary cooling circuit, prompting an unscheduled stop in Gibraltar. Subsequent investigations linked the issue to thermal-fatigue cracking, requiring urgent inspection and modification of other Trafalgar-class and remaining Swiftsure-class submarines.
By 2013, the Defence Nuclear Safety Regulator reported growing age-related issues across the class’s reactor systems, including a minor radioactive coolant leak on HMS Tireless earlier that year. These ageing problems underscored the need for the eventual transition to the Astute class.

Characteristics

The Trafalgar class was designed for stealth, durability and high operational performance. Although externally similar to the Swiftsure class, several enhancements distinguished the design.

• Dimensions and Displacement: The submarines measured approximately 85 metres in length, with a beam of around 9.8 metres and a draught of about 8.5 metres. Their submerged displacement was in the region of 5,200 tonnes.
• Propulsion: Each vessel used a Rolls-Royce PWR1 nuclear reactor linked to General Electric steam turbines and WH Allen turbo-generators, producing 32 MW. Two Paxman diesel generators provided auxiliary and emergency power. From the second boat onward, the class featured a pumpjet propulsion system, offering reduced acoustic signature compared with a conventional propeller.
• Crew: Standard complement was around 130 personnel.
• Hull and Navigational Features: To reduce detection, the hull was coated with anechoic tiles that absorbed sonar pulses. The sail and retractable diving planes were reinforced for surfacing through ice.

Sensors, Systems and Armament

The Trafalgar class carried a sophisticated range of sensors and weaponry:

• Sonar Systems: Four boats—Torbay, Trenchant, Talent and Triumph—were later fitted with the advanced Sonar 2076 system.
• Electronic Support Measures: Equipment included UAP passive intercept and CESM Outfit CXA, with additional decoy systems installed from 2002.
• Armament: Five 533-millimetre torpedo tubes allowed stowage for up to thirty weapons. These included heavyweight torpedoes and Block IV Tomahawk cruise missiles capable of precision strikes at extended ranges.
• Control Systems: Steering equipment was notably based on a control column design originally used in the Vickers Wellington bomber.

Boats of the Class

Seven submarines formed the class, introduced incrementally between 1983 and 1991. Although initially expected to remain in service longer, the ageing of their reactors and advances in submarine design hastened their replacement by the Astute-class submarines.

Cultural Depictions

The Trafalgar class entered fictional representation when a six-part television thriller was commissioned in 2019, set aboard a fictional submarine named HMS Tenacity. Production was halted in 2020 and ultimately cancelled in 2021.
