Refreshable braille display

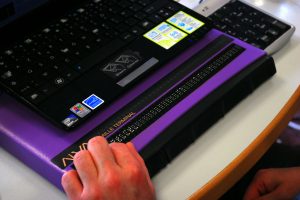

A refreshable braille display is an electromechanical device that enables visually impaired and deafblind individuals to access digital text through tactile braille characters. By raising and lowering small rounded pins arranged in braille cells, the device converts on-screen content into a readable tactile format, offering an efficient alternative or complement to speech synthesis technology. These devices play a crucial role in digital accessibility, supporting independent computer use in both personal and professional environments.

Mechanical design and operation

Refreshable braille displays are built around a row of braille cells, each typically containing eight pins arranged to form standard braille characters. The pins rise through holes in a flat surface, allowing the reader’s fingertips to glide smoothly along the line of text. Most commercial displays provide between 40 and 80 braille cells, although compact models with 18 to 40 cells are integrated into portable notetaker devices.
The mechanism responsible for raising the pins relies heavily on the piezoelectric effect. Piezoelectric crystals expand when voltage is applied, and in these devices each crystal is linked to a tiny lever which lifts an individual pin. Since every pin requires its own crystal, eight crystals are needed per braille cell. This dense electromechanical arrangement contributes to the relatively high cost of production, particularly because the device must withstand constant tactile use and mechanical stress.
Many refreshable displays incorporate an integrated braille keyboard, often inspired by the Perkins Brailler design. Users input text using two sets of four keys on either side of the machine, corresponding to the six (or eight) dots of the braille cell, along with additional keys for spacing, backspacing, and navigation. Other devices use a conventional QWERTY keyboard for input, combining mainstream typing with braille output. There are also specialised devices designed exclusively for input or output.
Advanced models include additional navigational features. Some displays indicate the computer’s cursor position by causing specific dots to vibrate, enabling users to locate text more intuitively. A number of devices offer a selector switch or button associated with each cell, permitting rapid cursor movement to any point on the display line.

Screen-reading software and system integration

The functionality of a refreshable braille display is governed by a screen reader, a software application that interprets the content of the computer’s display and converts it into braille. Screen readers extract information from operating systems, applications, and web pages, transform it into braille codes, and send it to the hardware device in real time.
Screen readers designed for graphical user interfaces (GUIs) must translate complex visual elements—such as buttons, menus, windows, toolbars, icons, or sliders—into structured text descriptions. This makes GUI screen readers significantly more intricate than those used with text-based interfaces, as they must identify the function, hierarchy, and relevance of visual components before relaying them to users.
Modern operating systems include dedicated application programming interfaces (APIs) to support screen reader accessibility. Examples include:

• UI Automation (UIA) for Microsoft Windows
• VoiceOver on macOS and iOS
• Assistive Technology Service Provider Interface (AT-SPI) for the GNOME desktop environment

These APIs provide standardised access to on-screen information, ensuring consistent performance across applications and enabling efficient compatibility with refreshable braille devices.

Variants of refreshable braille technology

Although the most recognised design is the bar-shaped terminal with braille cells arranged in a line, a variety of innovative formats have been developed to improve affordability, durability, or ergonomics.
Conventional braille cells: The traditional format uses rows of electromechanical braille cells, offering reliable character-by-character reading. These remain the most widely used in education, office work, programming, and digital communication.
Combined keyboard-display systems: Portable braille notetakers combine a refreshable braille display, braille keyboard, internal storage, and productivity software, allowing users to work independently of a computer. These devices support tasks such as note-taking, document editing, scheduling, and file transfer.
Input-only or output-only devices: Some systems are designed solely as braille keyboards for text entry, while others act only as output terminals for braille reading. Output-only models are often simpler and more affordable but limit interactive capacity.

Rotating-wheel braille displays

A significant technological experiment emerged in 2000 with the creation of the rotating-wheel braille display, developed at the United States National Institute of Standards and Technology (NIST) and independently at the Katholieke Universiteit Leuven in Belgium. This design was conceived to reduce manufacturing complexity and cost.
In rotating-wheel displays, braille dots are placed along the edge of a spinning wheel. As the wheel rotates at a controlled speed, the reader keeps one finger stationary against its surface, feeling braille characters pass continuously beneath the fingertip. An actuator sets the braille pattern on the wheel as it rotates, creating a scanning-style reading experience rather than a static line of cells.
The wheel mechanism is structurally simpler than conventional braille cells, offering potential advantages:

• Reduced production cost, since fewer piezoelectric components are required
• Continuous reading, eliminating the need to shift the hand across the line
• Compact design, suitable for portable devices

Although rotating-wheel displays remain largely experimental, they represent an alternative approach with promising implications for future braille display engineering.

Applications and uses in accessibility

Refreshable braille displays form a vital component in assistive technology ecosystems. Their applications include:

• Education: enabling students to read textbooks, mathematical notation, and digital learning materials in tactile form.
• Professional settings: supporting tasks such as coding, document creation, communication, data analysis, and administrative work.
• Independent digital access: allowing visually impaired users to navigate websites, operate software, and interact with digital devices without reliance on sight or audio.
• Communication for deafblind individuals: providing the primary channel for accessing written information where audio tools such as speech synthesizers are not practical.

The combination of braille displays and screen readers ensures access to the same information available visually, supporting inclusivity and adherence to accessibility standards in public and private sectors.

Challenges, limitations, and technological evolution

Despite the substantial benefits of refreshable braille displays, several challenges affect their widespread adoption:

• High cost: The complex electromechanical design makes these devices expensive, often exceeding the budgets of individual users or educational institutions.
• Durability: Regular tactile use and continuous mechanical movement increase the risk of wear, requiring robust engineering.
• Size constraints: Full braille lines commonly range from 40 to 80 cells, limiting how much text can be read at once compared with a visual display.
• Maintenance: Precision components may require calibration or servicing to maintain performance.
