Odometer

An odometer is an instrument designed to measure the distance travelled by a vehicle, most commonly found on bicycles, motor vehicles, and various transport carriages across history. The device may be mechanical, electronic, or electromechanical, and its name derives from the Ancient Greek hodós (path or gateway) and métron (measure). Its function has been essential to navigation, surveying, vehicle maintenance, and early scientific measurement. Both the Greco-Roman and Chinese civilisations independently developed early forms of odometers, contributing to the evolution of geared mechanisms and mechanical engineering.

Etymology and Basic Function

The term ‘odometer’ has long been used in English, although in regions employing Imperial or US customary units it has also been known as a mileometer or milometer, particularly in the United Kingdom and parts of the Commonwealth. The basic mechanism relies on the rotation of a wheel linked to a counting system. Each turn of the wheel corresponds to a fixed distance, allowing the total distance travelled to be calculated through simple, repeated measurement. Mechanical forms traditionally relied on gear trains and counters, while electronic forms use digital sensors and microprocessors.

Classical Origins in the Greco-Roman World

Evidence for odometer-type devices in the classical world emerges from the works of Pliny the Elder and Strabo, both of whom recorded highly accurate distance measurements attributed to Alexander the Great’s bematists, Diognetus and Baeton. Their measurements—deviating by only small margins from modern calculations—suggest the possible use of a mechanical measuring device rather than reliance on pacing alone.
The first explicit description of an odometer is attributed to Vitruvius, a Roman architect writing during the 1st century BC. His design employed a chariot wheel four Roman feet in diameter. After four hundred revolutions, equivalent to one Roman mile, an axle-mounted pin engaged a cogwheel containing four hundred teeth. This transferred motion to a secondary counting gear fitted with holes containing pebbles. As each mile was completed, a pebble dropped into a container, allowing the total distance to be read by counting the accumulated stones. This mechanical simplicity made the device theoretically achievable within the technology of the period.
Although Vitruvius’ account is well-known, the actual construction of the device in antiquity remains debated. Leonardo da Vinci attempted a reconstruction many centuries later but failed to produce a working model using square-toothed gears. Modern engineering experiments, however, notably by André Sleeswyk in 1981, demonstrated that the substitution of triangular gear teeth similar to those found in the Antikythera mechanism produced a fully functional odometer corresponding to Vitruvius’ description.
Other classical engineers also appear to have contributed to the development of distance-measuring mechanisms. Hero of Alexandria, active in the 1st century AD, described related measurement devices using sophisticated gear systems. The existence of such mechanisms in the technological context of Alexandria supports the plausibility of complex odometer designs.
By the reign of Emperor Commodus in the late 2nd century AD, odometers appear to have been used in Roman administration and engineering. Nevertheless, after the decline of the Roman Empire, references to such devices largely disappear from European texts until their revival in the fifteenth century, when interest in mechanical invention re-emerged.

Independent Development in Imperial China

China independently produced its own odometer, known historically as the jìlì gǔchē, commonly translated as the ‘li-recording drum carriage’. The device was capable of indicating each li travelled—a traditional Chinese unit of distance—by means of mechanical figures striking drums or bells.
The invention is often associated with the Han dynasty polymath Zhang Heng (78–139 AD), though textual evidence suggests a more gradual developmental process. Court specialists, particularly those associated with ceremonial carriages and mechanical entertainments, appear to have refined the design during the Western Han period. A mural from the Xiaotang Mountain Han Shrine, dated to around 125 AD, depicts a mechanically operated carriage, demonstrating early adoption of such devices.
Technical descriptions from the Book of Jin (635 AD) provide detailed accounts of the odometer’s functioning. It utilised arrangements of gears and shafts similar to those found in other sophisticated Chinese machines, including the famous south-pointing chariot attributed to Ma Jun. The integration of these technologies indicates a deep understanding of gearing ratios, mechanical timing, and rotational transfer.
During the Song dynasty (960–1279 AD), odometers became more elaborate and better documented. Sources from the period describe brightly painted two-storey carriages, each containing wooden figures that struck instruments to indicate distance. The engineering treatise presented by Chamberlain Lu Daolong in 1027 AD provides precise measurements of gear diameters, tooth spacing, wheel circumferences, and the overall method of calculating rotations. These specifications demonstrate one of the most advanced pre-modern mechanical systems anywhere in the world, employing multiple interconnected gear trains with carefully calibrated tooth counts to achieve accurate measurement.
Chinese mathematicians also incorporated odometers into theoretical studies. The Sunzi Suanjing (Master Sun’s Mathematical Manual), dating between the 3rd and 5th centuries, posed problems requiring students to calculate the number of wheel rotations needed to travel between two cities based on the wheel circumference—an early example of mathematical application to mechanical engineering.

Medieval and Early Modern Developments

While the explicit use of odometers waned in medieval Europe following the fall of Rome, interest revived during the Renaissance. Scholars rediscovered classical texts, including those of Vitruvius, prompting attempts to recreate ancient machines. Leonardo da Vinci’s attempts, although unsuccessful, reflected this technological curiosity and laid groundwork for subsequent experimentation with gear mechanisms.
By the seventeenth century, odometers became more common in surveying and navigation. Explorers and engineers travelling long distances by carriage used mechanical distance meters to record route lengths. Improvements in metalworking and gear precision enabled more durable devices capable of operating reliably over uneven terrain.
During the Industrial Revolution, odometer mechanisms began to be integrated into mass-produced machinery. Steam engines, railway locomotives, and early motor vehicles required reliable measures of distance for scheduling, maintenance, and commercial purposes. Mechanical counters employing ratchet systems and numerical dials replaced earlier pebble-counting approaches. These devices became standard fittings on bicycles, carriages, and eventually motor cars.

Modern Electronic Odometers

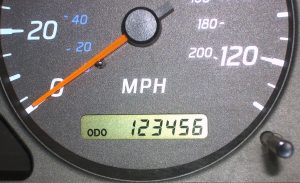

With the twentieth century came standardisation of odometers within the automotive industry. Mechanical gear-driven odometers dominated early vehicle design, displaying readings on rotary number wheels visible on the dashboard. These systems were durable but prone to wear, tampering, and limited precision.
Electronic odometers, developed later in the century, replaced rotational gear systems with digital sensors, commonly magnetic or optical devices attached to the drivetrain or wheel assembly. These emitted signals corresponding to wheel revolutions, which were processed by microcontrollers to record cumulative distance. Digital displays offered improved accuracy, resistance to tampering, and integration with other vehicle systems such as trip computers, fuel-efficiency meters, and maintenance alerts.
Hybrid electromechanical systems also appeared, combining digital sensors with mechanically driven displays in transitional models. Today, electronic odometers are standard in commercial vehicles worldwide, with stored data often protected within the vehicle’s control modules for legal verification.

Applications and Significance

Odometers play essential roles across a range of practical and scientific fields. Their key applications include:

• Vehicle maintenance scheduling, enabling calculations for servicing intervals, tyre rotation, lubrication cycles, and component longevity.
• Road and route surveying, historically crucial for mapping, infrastructure planning, and military logistics.
• Navigation, particularly in caravanning, cycling, and aviation ground operations.
• Transport logistics, where accurate mileage underpins fleet management, cost evaluation, and fuel consumption analysis.
• Scientific measurement, especially in archaeological or historical reconstruction of travel distances.
