Naval Architecture

Naval architecture, as applied to a modern tanker ship, is an interdisciplinary engineering field combining mechanical, structural, electrical, hydrodynamic, and safety engineering principles. It encompasses the complete life cycle of a vessel, from its concept design and hydrostatic evaluation to shipbuilding, sea trials, operation, maintenance, and eventual repair or conversion. Tankers in particular require highly specialised design considerations due to their size, cargo characteristics, operational environments, and stringent safety requirements.
An understanding of the naval architecture of tankers involves the study of hydrostatics, hydrodynamics, structural engineering, arrangements, and construction processes, all of which ensure the vessel’s safety, durability, efficiency, and regulatory compliance.

Scope and Foundations of Naval Architecture

Naval architecture for tankers begins with preliminary design, which establishes principal characteristics such as length, breadth, depth, displacement, cargo capacity, and propulsion requirements. It then progresses to detailed design, sea trials, and in-service performance monitoring. Tankers also undergo periodic dry-docking for inspection, repair, and modernisation, requiring calculations to modify or restore structural strength, stability, and hydrodynamic performance.
The discipline is guided by statutory regulations and classification society rules that govern structural strength, stability, damage control, cargo-handling systems, fire safety, and pollution prevention. These regulations ensure that tankers meet international safety and environmental standards throughout their service.

Hydrostatics: Buoyancy, Displacement, and Stability

Hydrostatics deals with the conditions experienced by a tanker when it is at rest in calm water. For tankers, accurate hydrostatic calculations are essential because the vessel must remain safely afloat with varying cargo volumes, ballast loads, and fuel states.
Key hydrostatic properties include:

• Buoyancy: The upward force equal to the weight of seawater displaced by the hull.
• Displacement: The total mass of the vessel, including structure, cargo, ballast, and provisions.
• Longitudinal Stability: The vessel’s ability to resist trimming excessively by bow or stern due to load distribution.
• Transverse Stability: The tanker’s capacity to recover from rolling motions caused by waves, wind, or cargo movement.

A floating tanker experiences six degrees of freedom: sway, surge, heave, roll, pitch, and yaw. Stability requires that the forces of gravity and buoyancy act along the same line of action. The centre of gravity and the metacentric height—particularly important for heavily laden tankers—determine whether the ship can recover from external disturbances.
Free-surface effects in cargo and ballast tanks are carefully managed because fluid movement can reduce stability. Tankers mitigate this through longitudinal and transverse bulkheads, minimising free-surface area and maintaining stable operating conditions.

Hydrodynamics: Resistance, Powering, and Seakeeping

Hydrodynamic design is fundamental to tanker efficiency. Tankers, being large displacement vessels, experience significant resistance from water flow along the hull. Naval architects model and calculate this resistance to determine the propulsion power required.
Components of hydrodynamic performance include:

• Hull Resistance: Frictional and wave-making resistance that must be minimised to reduce fuel consumption.
• Propulsion: Most tankers are powered by low-speed diesel engines connected to large-diameter, slow-turning propellers optimised for fuel economy. Some vessels incorporate alternative propulsion systems such as electric drives or, in specialised cases, nuclear propulsion.
• Seakeeping: The vessel’s response to waves, winds, and currents. Tanker hull forms are designed to reduce slamming, excessive motions, and stress concentrations while maintaining cargo safety.

Tankers must also maintain good manoeuvrability, achieved through rudders, bow thrusters, and, on occasion, stern thrusters.

Structural Engineering and Strength Requirements

Tanker structures are designed to withstand global and local loads during loading, unloading, and navigation. Structural engineering focuses on:

• Material Selection: Tankers are primarily constructed from steel, with some aluminium used in superstructures.
• Longitudinal Strength: Due to their length, tankers face significant longitudinal bending stresses, such as sagging and hogging, caused by wave action and uneven cargo distribution.
• Grillage Systems: Hulls are formed by steel plating supported by stiffeners arranged in panels. These panels form the decks, bottom, sides, and bulkheads.
• Stiffening Systems:
  • The Isherwood System, widely used in tankers, employs longitudinal stiffeners supported by transverse frames spaced several metres apart. This layout enhances overall hull strength and reduces the likelihood of buckling.

Structural design is closely tied to the need for safety in the event of collision or grounding. Double-hull arrangements, mandated for most tankers, provide additional protection against oil spills by maintaining separation between cargo tanks and the outer shell.

Arrangements and Ship Systems

The arrangement of a tanker ship involves careful allocation of spaces to optimise safety, efficiency, and regulatory compliance. The design includes cargo tanks, segregated ballast tanks, pump rooms or pump modules, machinery spaces, crew accommodation, and control stations.
Key considerations include:

• Fire Protection: Advanced systems including inert gas systems, fire-resistant bulkheads, and dedicated firefighting equipment.
• Ergonomics and Access: Safe access routes for maintenance, cargo operations, and emergency evacuation.
• Tonnage Measurement: Calculation of gross and net tonnage for regulatory and operational purposes.

Modern tankers also incorporate advanced navigation, automation, and safety monitoring systems to enhance operational reliability.

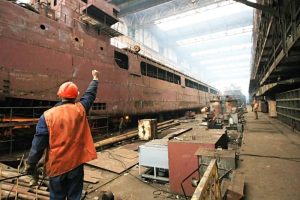

Construction Processes and Techniques

Shipbuilding techniques for tankers depend largely on steel fabrication. Steps include:

• Cutting and Shaping: Steel plates are rolled, cut, machined, and bent into the required forms.
• Welding: Hull and structural components are assembled using advanced welding processes to ensure watertight integrity and structural soundness.
• Erection: Prefabricated blocks are joined on a slipway or in a dry dock to form the complete hull.
• Launching: Once the hull is complete, the ship is launched and prepared for outfitting.
• Outfitting: Installation of machinery, piping, electrical systems, and safety equipment.
• Testing and Trials: Sea trials verify propulsion, stability, handling, and safety systems.

Composite materials such as fibre-reinforced plastics are used mainly in smaller craft, though steel remains the standard for tankers due to its strength and durability.

Naval Architecture as Science and Craft

Historically, naval architecture relied heavily on craftsmanship, with half-models and empirical judgment guiding ship design. Terms like “fair lines” were used to describe smooth and effective hull shapes. Though modern naval architecture is grounded in advanced hydrodynamic theory and computational analysis, the traditional craft element remains relevant when addressing complex design trade-offs.
Contemporary tools include:

• Computational fluid dynamics for hull optimisation
• Slamming and green-water impact analysis
• Intact and damage stability modelling
• Structural finite-element analysis
• Tank testing and full-scale trials

Modern Applications and Significance

The naval architecture of tanker ships is central to global energy transport, environmental protection, and maritime safety. Tanker designers must balance cost efficiency, cargo capacity, environmental regulations, and operational safety. With increasing emphasis on decarbonisation, future tanker designs are incorporating alternative fuels, energy-efficient hulls, and advanced propulsion options.
