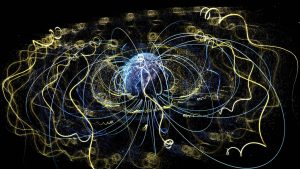

Magnetosphere Particle Motion

The Earth’s magnetosphere is a vast region of space dominated by the planet’s magnetic field and populated by charged particles originating from both the solar wind and the ionosphere. Its structure and behaviour are governed by the geometry of magnetic field lines and by the laws of plasma physics. Understanding how charged particles move within this magnetic environment is essential for explaining phenomena such as aurorae, radiation belts, ring currents, and the transfer of solar wind energy into near-Earth space.
The Earth’s magnetic field resembles that of a tilted bar magnet, with the North Magnetic Pole located in the southern hemisphere of the planet and the South Magnetic Pole located in the northern hemisphere. Importantly, the south pole of this equivalent magnet lies deep within the Earth’s interior, beneath the geographic North Pole. This global magnetic field is not produced by a permanent magnet but is generated by a geodynamo operating in the outer liquid core, where the motion of electrically conducting molten iron creates large-scale electric currents and hence a magnetic field.

Magnetic Field Lines and Their Physical Meaning

Magnetic field lines are a conceptual tool used to visualise the structure of a magnetic field. At any point, the direction of a field line indicates the direction of the magnetic force that would be experienced by a north magnetic pole placed at that location. The density of these lines represents the strength of the magnetic field: where lines are closely spaced, the field is strong; where they are widely spaced, the field is weaker.
In the magnetosphere, ions and electrons generally follow these magnetic field lines. While individual particles undergo complex motions, the field lines act as guiding structures that organise plasma behaviour. This guiding role becomes particularly important in large-scale plasma dynamics, which are described by magnetohydrodynamics (MHD), a theory that treats plasma as a conducting fluid interacting with magnetic fields.

The Closed Magnetosphere and the Magnetopause

In an idealised closed model of the magnetosphere, magnetic field lines originating on Earth close back onto the planet without connecting to the interplanetary magnetic field. In this configuration, the boundary between the magnetosphere and the solar wind is known as the magnetopause. This boundary is defined by magnetic field lines and acts as a relatively stiff barrier that prevents most solar wind plasma from entering the magnetosphere.
The principal weak points in this barrier are the polar cusps, two funnel-shaped regions near the magnetic poles. At these locations, field lines that close on the dayside (near local noon in geocentric solar magnetospheric, GSM, coordinates) are separated from those closing on the nightside (near local midnight). At the cusps, the magnetic field intensity on the boundary approaches zero, providing little resistance to plasma entry. Consequently, solar wind particles can directly penetrate the magnetosphere through these regions.
This simplified description assumes symmetry in the noon–midnight plane, but even in more complex and asymmetric magnetic configurations, topological arguments imply that cusp-like regions must still exist. The actual amount of solar wind plasma and energy entering the magnetosphere depends on how closely the real configuration approximates a closed system. A key factor controlling this departure is the orientation of the interplanetary magnetic field (IMF), particularly whether it is directed northward or southward relative to Earth’s magnetic field.

Guiding Role of Magnetic Field Lines

Magnetic field lines in the magnetosphere do more than shape particle trajectories. They also channel Birkeland currents, which are large-scale electric currents flowing along magnetic field lines between the magnetosphere and the ionosphere. Similarly, energy and heat transport occur much more readily along field lines than across them. This anisotropy has often been compared to the grain in a piece of wood, which allows easy splitting along one direction but strongly resists motion across it.
Because of this property, magnetic field lines impose a strong directional preference on plasma motion, profoundly influencing the global behaviour of the magnetosphere.

Motion of Charged Particles in a Magnetic Field

The simplest magnetic field to analyse is a uniform field with straight, parallel field lines and constant intensity. In such a field, a charged particle entering with a velocity perpendicular to the field lines experiences a Lorentz force perpendicular to both its velocity and the magnetic field. This force acts as a centripetal force, causing the particle to move in a circular path.
If a particle has charge q, mass m, velocity v, and moves in a magnetic field of strength B, the radius of its circular motion, known as the gyroradius, is given by the balance between centripetal and magnetic forces. When the particle’s velocity is not purely perpendicular to the field, it can be resolved into a perpendicular component and a parallel component. The perpendicular component causes circular motion, while the parallel component remains unaffected by the magnetic field.
The combination of these two motions produces a helical or spiral trajectory around a magnetic field line. This behaviour persists even when the field is curved or slowly varying, giving rise to the concept of guiding centre motion, in which the particle spirals around a central field line that itself may curve through space.
A crucial property of magnetic forces is that they are always perpendicular to the particle’s velocity. As a result, they do no work and do not change the particle’s total energy. Magnetic fields can therefore strongly influence particle motion without supplying or removing energy.

Magnetic Mirroring and Adiabatic Invariants

In the Earth’s dipole-like magnetic field, field lines converge near the planet and diverge farther away. As a charged particle travels along a field line towards regions of stronger magnetic field, its motion changes in a systematic way. A key quantity governing this behaviour is the magnetic moment, which depends on the energy associated with the particle’s perpendicular motion divided by the magnetic field strength. This quantity remains nearly constant under most magnetospheric conditions and is known as an adiabatic invariant.
As a particle moves into a region of stronger magnetic field, conservation of the magnetic moment requires the energy of its perpendicular motion to increase. Because the total energy remains constant, this increase comes at the expense of the energy associated with motion parallel to the field. Eventually, the parallel velocity is reduced to zero, and the particle is reflected back towards weaker field regions. This process is called magnetic mirroring.
Magnetic mirroring enables particles to become trapped between two mirror points, one in each hemisphere, bouncing back and forth along magnetic field lines. This mechanism is fundamental to the existence of the Van Allen radiation belts and the ring current. Only particles with velocities very nearly parallel to the field avoid mirroring; these particles enter the atmosphere and are lost, creating a region of empty phase space known as the loss cone.

Drift Motion and the Ring Current

In addition to gyration and bouncing, trapped particles undergo a slower sideways motion known as magnetic drift. Because the magnetic field strength increases closer to Earth, the gyration is slightly tighter on the side of the orbit nearer the planet. This asymmetry causes ions and electrons to drift in opposite directions around Earth.
The combined effect of these drifts produces a net westward current carried primarily by ions, known as the ring current. This current plays a major role in magnetic storms by reducing the strength of Earth’s surface magnetic field during periods of intense geomagnetic activity.

Plasma Fountain and Polar Outflow

Observations in the 1980s revealed the existence of a plasma fountain near Earth’s polar regions. In this process, ions such as hydrogen, helium, and oxygen flow upward from the ionosphere along open magnetic field lines into space. Oxygen ions, in particular, provide clear evidence that ionospheric material can be extracted and accelerated into the magnetosphere.
Some of this plasma escapes into interplanetary space, while some returns along field lines, depositing energy into the upper atmosphere and contributing to auroral emissions. The plasma fountain thus represents an important link between the ionosphere and the magnetosphere, illustrating the continuous exchange of matter and energy within the Sun–Earth system.
