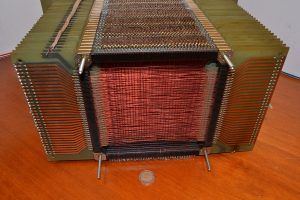

Magnetic Core Memory

Magnetic core memory was a dominant form of computer random-access memory from the mid-1950s to the mid-1970s. Known simply as core by practitioners of the period, it was valued for its reliability, non-volatility and suitability for real-time digital systems. Although now obsolete, its terminology and conceptual legacy continue to influence computing.

Structure and operating principles

Magnetic core memory stores information using tiny toroidal rings made from semihard ferrite materials. Each ferrite core acts as a single binary storage element, representing either a 0 or a 1 depending on the direction of its magnetisation. Arrays of these cores are arranged in grid patterns, with several wires threaded through each ring to form selective control paths.
A standard configuration uses two orthogonal sets of wires, known as the X and Y drive lines. To write a bit, current pulses are applied simultaneously to one X and one Y line, each supplying half of the energy required to flip a core’s magnetisation. Only the core located at the intersection of these energised lines receives the full switching current and changes state. The direction of the combined current determines whether the stored bit becomes a 1 or a 0.
When the magnetisation direction of a core flips, electromagnetic induction produces a small voltage pulse in an additional sense wire. If the write pulse reverses the previously stored state, a sense pulse is detected; if the new pulse matches the existing state, no pulse appears. This mechanism enables the system to determine the stored value. Because reading a bit overwrites its content, the process is termed destructive readout. A subsequent write-after-read cycle restores the data to its previous value.
Cores retain their state without electrical power, making the technology a form of non-volatile memory. Variations in wiring allowed memory designers to increase reliability or tailor behaviour for specialised uses. One notable variant was core-rope memory, an exceptionally reliable read-only form used extensively in the Apollo Guidance Computer.

Performance, density and manufacturing

Core memory matured significantly during the 1960s. Manufacturing required skilled manual assembly, as workers threaded hair-thin wires through thousands of miniature ferrite rings. Despite numerous attempts, large-scale automation proved elusive because of the delicacy and precision required.
As manufacturing improved, memory density increased. By the late 1960s, densities of around 32 kilobits per cubic foot (roughly 0.9 kilobits per litre) were common. Over the same period, cost dropped dramatically from approximately one dollar per bit to around one cent per bit. Although this reduction expanded its use, it also underscored the importance of finding more compact technologies to support future systems.
Core memory was considered highly reliable when maintained correctly. Its non-volatility, predictable timing and ruggedness made it suitable for mission-critical systems, industrial controls and early real-time computing applications.

Historical development

The origins of magnetic core memory lie in early recognition of the hysteresis behaviour of magnetic materials. Engineers studying transformers and magnetic switching devices explored their capacity for stable, bistable states, which could be harnessed for digital storage.
A number of researchers contributed to its development. Early explorations were conducted by J. Presper Eckert and colleagues during the ENIAC era. Independently, robotics pioneer George Devol filed patents for static magnetic memory in the mid-1940s, building on the use of magnetic materials for controlled switching. Frederick Viehe’s transformer-based logic patents of the late 1940s further demonstrated the feasibility of magnetic switching devices for computation.
Substantial early progress came from An Wang and Way-Dong Woo, whose 1949 pulse-transfer controlling device laid groundwork for using magnetic components in shift-register-type memories. Their approach involved the use of pairs of transformers to propagate stored values along a chain. Although ingenious, the design was sequential rather than random-access and therefore less suited to large-scale computers.
A decisive advance occurred at the Massachusetts Institute of Technology’s Project Whirlwind. Jay Forrester and his colleagues, seeking a fast and reliable memory technology for real-time aircraft-tracking applications, developed the coincident-current selection technique. This method enabled random access to large arrays by using combinations of drive-line pulses to select individual cores. Forrester’s design, installed in Whirlwind in 1953, demonstrated access times around 9 microseconds, significantly improving system performance over earlier technologies such as Williams tubes.
Jan A. Rajchman of RCA also pioneered alternative ferrite-based memory designs. His early experiments used ferrite bands on metal tubes, produced using repurposed industrial equipment. Rajchman contributed additional innovations to electronic storage devices, including enhanced versions of the Williams tube and the Selectron tube.
Two key inventions in 1951 enabled the practical realisation of core memory as a general-purpose technology: An Wang’s write-after-read method, solving the issue of destructive reads, and Forrester’s coincident-current system, permitting expansion to three-dimensional arrays with millions of bits. Rapid commercialisation followed, with early uses in peripherals of the ENIAC, the IBM 702, the IBM 704 and the Ferranti Mercury. Outside computing, one of the earliest mass-market applications appeared in Seeburg Corporation’s Tormat system, used in jukeboxes from 1955.

Decline and legacy

Despite its success, core memory began to lose ground with the introduction of semiconductor memory. By the late 1960s the first integrated memory chips appeared, and in the early 1970s dynamic random-access memory (DRAM) became cost-competitive with ferrite-based systems. DRAM’s smaller size, lower power consumption and ease of integration led to a rapid shift. Core memory disappeared from mainstream production between roughly 1973 and 1978.
Although obsolete, its terminology survives. Many programmers continue to refer to primary memory as core. System crashes that save full memory dumps still produce files known as core dumps. Algorithms constrained by main-memory size are described as external-memory or in-core algorithms, preserving the historical distinction.
