Heliopause

The Heliopause is the outermost boundary of the heliosphere, marking the point where the influence of the solar wind—a stream of charged particles emitted by the Sun—ceases to dominate, and the interstellar medium begins to prevail. It represents the frontier between the Sun’s plasma environment and the surrounding interstellar space, effectively defining the edge of the solar system’s magnetic and energetic domain.
The heliopause is a dynamic, invisible boundary, shaped by the balance between the outward pressure of the solar wind and the inward pressure of interstellar gas, dust, and magnetic fields. Its location and structure vary with solar activity and the interstellar environment, making it a key area of study in astrophysics and space science.

Structure of the Heliosphere

To understand the heliopause, it is essential to examine the layered structure of the heliosphere, the vast bubble-like region created by the Sun’s continuous outflow of charged particles. The major regions include:

1. Solar Wind Region: Extends outward from the Sun to where the solar wind remains supersonic. It contains ionised plasma moving at speeds of 300–800 km/s.
2. Termination Shock: The point where the supersonic solar wind slows abruptly to subsonic speeds due to interaction with the interstellar medium. Beyond this shock, the solar wind becomes turbulent and compressed.
3. Heliosheath: A transitional zone between the termination shock and the heliopause. In this region, slowed solar wind particles mix with interstellar particles, creating a turbulent, high-pressure plasma.
4. Heliopause: The boundary where solar wind pressure balances the external interstellar medium pressure. It marks the end of the Sun’s influence and the beginning of interstellar space.
5. Bow Shock (possible): Some models suggest that the heliosphere may produce a bow shock or wave ahead of it as the solar system moves through the galaxy, though observations indicate a more subtle interaction—possibly a bow wave rather than a strong shock.

Physical Characteristics

• Nature of Boundary: The heliopause is not a solid surface but a plasma interface, separating two regions with distinct particle compositions, temperatures, and magnetic fields.
• Composition: On the solar side, it contains mostly solar wind plasma and magnetic fields; on the interstellar side, it contains galactic plasma, neutral hydrogen, and cosmic rays.
• Pressure Balance: The location of the heliopause is determined by the equilibrium between the dynamic pressure of the solar wind and that of the interstellar medium.
• Temperature and Density: The plasma within the heliosheath is relatively hot and dense compared to the colder, thinner interstellar plasma beyond the heliopause.

Distance and Location

The distance of the heliopause from the Sun is not fixed; it varies with solar activity and changes in interstellar pressure.

• On average, it lies at about 120 astronomical units (AU) from the Sun (1 AU = the distance between the Earth and the Sun, approximately 150 million kilometres).
• Observations suggest that the heliopause is closer on the solar nose side (the direction facing the Sun’s motion through the galaxy) and further on the tail side, forming a comet-like shape around the solar system.

The first direct crossings by spacecraft provided empirical data on its location:

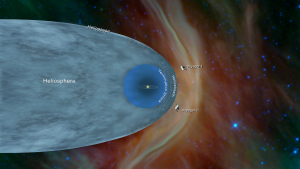

• Voyager 1 crossed the heliopause on 25 August 2012 at about 121.6 AU.
• Voyager 2 crossed it on 5 November 2018 at approximately 119 AU.

These missions confirmed the heliopause as the boundary where solar particles sharply decline and galactic cosmic rays rise significantly.

Scientific Discovery and Exploration

The heliopause had long been a theoretical concept until direct measurements were made possible by NASA’s Voyager spacecraft launched in 1977. Both Voyagers carried instruments to measure plasma density, magnetic fields, and cosmic ray intensity.
When Voyager 1 crossed the heliopause in 2012, its instruments recorded:

• A dramatic drop in solar wind particles.
• A sudden increase in galactic cosmic rays.
• A shift in magnetic field direction and strength.

These observations confirmed the spacecraft’s entry into interstellar space, though it remains within the Sun’s gravitational influence.
Voyager 2’s crossing in 2018 provided complementary data, confirming that the heliopause is asymmetric, likely influenced by differences in interstellar magnetic pressure and solar activity.
Both spacecraft continue to send back valuable information about the interstellar boundary and the Sun’s interaction with its galactic environment.

Interaction with the Interstellar Medium

The heliopause acts as a shield protecting the solar system from the full intensity of galactic cosmic radiation. It deflects and slows high-energy particles from outside the solar system, ensuring that only a fraction penetrate the inner heliosphere.
However, the heliosphere is constantly changing due to:

• Solar cycles (11-year periods): During solar maximum, increased solar wind pressure can push the heliopause outward; during solar minimum, it can contract.
• Galactic environment: Variations in interstellar magnetic fields and gas density affect its overall shape and stability.

Thus, the heliopause is a dynamic boundary, fluctuating in size and structure over time.

Importance in Space Science

The study of the heliopause has broad implications across several scientific fields:

1. Astrophysics: Helps in understanding stellar wind–interstellar medium interactions, applicable to other stars and their astrospheres.
2. Cosmic Ray Research: The heliopause influences how cosmic rays propagate into the solar system, impacting spacecraft radiation exposure and Earth’s upper atmosphere.
3. Solar and Space Weather Studies: Provides insights into the Sun’s long-term magnetic activity and its relationship with the galactic environment.
4. Interstellar Exploration: The region beyond the heliopause marks humanity’s entry into interstellar space, a milestone achieved by the Voyager missions.

Observational Techniques

In addition to in situ measurements by spacecraft, scientists use various indirect methods to study the heliopause, including:

• Energetic Neutral Atom (ENA) Imaging: Detects neutral atoms formed by charge exchange processes at the heliospheric boundary, as used by NASA’s IBEX (Interstellar Boundary Explorer) mission.
• Magnetic Field Analysis: Observes variations in interplanetary magnetic field lines to infer boundary interactions.
• Cosmic Ray Flux Monitoring: Tracks fluctuations in cosmic ray intensity near the heliopause to determine its thickness and permeability.

Upcoming missions like IMAP (Interstellar Mapping and Acceleration Probe) aim to provide higher-resolution data on heliopause dynamics.

Theoretical Models

Scientists have developed magnetohydrodynamic (MHD) models to simulate the interaction between the solar wind and interstellar medium. These models describe the heliosphere as a teardrop-shaped bubble with a compressed nose and extended tail (the heliotail).
The heliopause, in this context, is not a sharp boundary but a thin transition layer, possibly only a few astronomical units thick, where particle populations mix and magnetic reconnection can occur.

Future Exploration

Beyond the Voyagers, future interstellar missions aim to study the heliopause and beyond with advanced instruments. NASA’s Interstellar Probe Mission, currently in conceptual development, envisions launching in the 2030s to travel over 1,000 AU from the Sun, directly examining the heliosphere’s outer limits and galactic environment.
Such missions will deepen our understanding of how stellar systems interact with their cosmic surroundings and how life-supporting environments like Earth are shielded from galactic radiation.
