Enzyme-Linked Immunosorbent Assay

The Enzyme-Linked Immunosorbent Assay (ELISA) is a biochemical technique used to detect and quantify the presence of specific antigens or antibodies in a sample. It is one of the most widely used immunoassays in diagnostics, research, and biotechnology due to its high sensitivity, specificity, and versatility. ELISA plays a vital role in medical testing for infections, hormones, and other biomarkers, as well as in food safety and environmental monitoring.

Principle and Basic Concept

The ELISA technique is based on the antigen–antibody interaction, a fundamental immunological reaction. It relies on the principle that a specific antibody binds only to its corresponding antigen, forming a stable immune complex. The presence of this binding is then detected through an enzyme-linked secondary antibody, which catalyses a colour-producing reaction when exposed to a suitable substrate.
The intensity of the colour developed is proportional to the amount of antigen or antibody present in the sample, allowing both qualitative and quantitative analysis.
The basic components of an ELISA test include:

• Antigen or antibody (depending on the assay type).
• Solid phase (usually a microtiter plate) for immobilisation.
• Enzyme-labelled conjugate, such as horseradish peroxidase (HRP) or alkaline phosphatase (AP).
• Substrate, which produces a measurable colour change (commonly TMB – tetramethylbenzidine).
• Optical reader, which measures absorbance and quantifies results.

Types of ELISA

ELISA tests are classified according to how the antigen and antibody are arranged and detected. The main types are:

• Direct ELISA: In this simplest format, the antigen is immobilised on the plate, and an enzyme-linked antibody directly binds to it. It is fast but less sensitive, as it lacks a signal amplification step.
• Indirect ELISA: The antigen is coated on the plate, and a primary antibody binds to it. A secondary enzyme-linked antibody then binds to the primary antibody. This two-step method enhances sensitivity and flexibility, allowing detection of various antibodies.

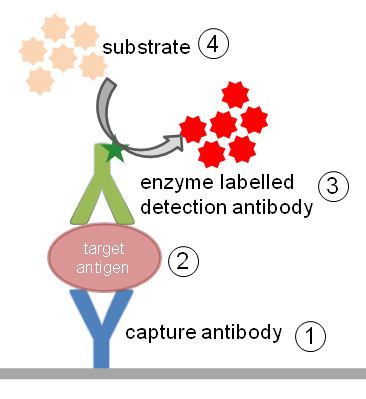

• Sandwich ELISA: This format uses two antibodies specific to different sites (epitopes) of the same antigen. The “capture antibody” is immobilised on the plate, the antigen binds to it, and then a “detection antibody” (linked to an enzyme) binds to the antigen. It provides high specificity and sensitivity and is commonly used for complex samples such as blood or serum.
• Competitive ELISA: The sample antigen competes with a labelled antigen for binding to a limited number of antibody sites. The resulting signal is inversely proportional to the antigen concentration—higher antigen levels produce weaker colour intensity. This format is useful for detecting small molecules and haptens such as hormones or drugs.

Procedure and Steps

While the precise steps may vary depending on the ELISA type, the general procedure includes:

1. Coating: The antigen or capture antibody is bound to the microplate wells.
2. Blocking: Unoccupied binding sites are covered with a blocking agent (e.g., bovine serum albumin) to prevent non-specific binding.
3. Sample Addition: The test sample containing the target analyte (antigen or antibody) is added to the wells.
4. Binding and Washing: After incubation, unbound materials are removed by washing.
5. Addition of Enzyme-Conjugate: An enzyme-labelled antibody or antigen is added, which binds to the immune complex.
6. Substrate Reaction: A chromogenic substrate is added, and the enzyme catalyses a colour change.
7. Measurement: The intensity of the colour is measured using a spectrophotometer or ELISA reader, and results are interpreted based on standard curves.

Applications in Medicine and Research

ELISA is a cornerstone method in both clinical diagnostics and laboratory research due to its precision and scalability. Common applications include:

• Infectious Disease Diagnosis: Detection of antibodies or antigens for diseases such as HIV, hepatitis B and C, dengue, COVID-19, and malaria.
• Hormone Measurement: Quantification of hormones like insulin, hCG (human chorionic gonadotropin), and thyroid hormones.
• Allergy Testing: Identification of specific IgE antibodies against allergens.
• Cancer Research: Measurement of tumour markers such as PSA (Prostate-Specific Antigen) or CA-125.
• Vaccine Efficacy Monitoring: Determination of immune responses by measuring antibody titres.
• Food and Environmental Safety: Detection of contaminants such as pesticides, toxins, allergens, or pathogens in food and water samples.

Advantages of ELISA

• High sensitivity and specificity, due to antigen–antibody recognition.
• Quantitative analysis, enabling accurate concentration measurement.
• Versatility, applicable to a wide range of biomolecules.
• Relatively low cost and easy automation for large-scale screening.
• Non-radioactive detection, unlike radioimmunoassays, making it safer and more environmentally friendly.

Limitations

Despite its advantages, ELISA has several constraints:

• Requires careful calibration and standardisation for accurate results.
• Cross-reactivity may occur if antibodies bind to similar antigens, causing false positives.
• Time-consuming when multiple washing and incubation steps are involved.
• Limited capability for real-time or in situ detection.

To overcome these drawbacks, modified techniques such as ELISpot (Enzyme-Linked Immunospot), Chemiluminescent ELISA, and Multiplex ELISA have been developed, offering higher sensitivity and throughput.

Interpretation of Results

ELISA results are interpreted through optical density (OD) readings, typically measured at wavelengths between 450–620 nm. The relationship between OD values and concentration is established using a standard curve generated from known concentrations of the analyte.

• Positive result: Indicates the presence of the target antigen or antibody.
• Negative result: Suggests absence or concentration below the detection limit.
• Equivocal or borderline result: Requires retesting or confirmation by alternative assays such as Western blot or PCR.

Innovations and Future Trends

Recent advancements have expanded the scope and efficiency of ELISA technology:

• Microfluidic ELISA enables miniaturisation and faster reaction times.
• Automated ELISA systems streamline clinical testing and reduce human error.
• Point-of-care ELISA devices, such as lateral flow immunoassays, provide rapid results outside laboratory settings.
• Nano-ELISA and biosensor-based assays incorporate nanomaterials to enhance sensitivity for ultra-trace detection.
