Doppler effect

The Doppler effect is a fundamental concept in wave physics describing the change in observed frequency of a wave when there is relative motion between the source and the observer. It influences everyday experiences such as the shifting pitch of a passing siren as well as advanced scientific techniques used in astronomy and radar measurements. First identified in the nineteenth century, the effect has become a key analytical tool in understanding wave propagation in media and in vacuum, providing insight into motion, velocity, and the structure of distant astronomical objects.

Background and Conceptual Understanding

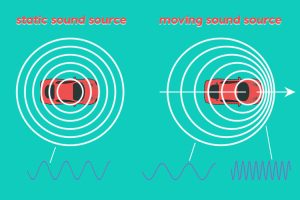

The Doppler effect arises when a wave-emitting source and an observer are in relative motion. In the case of sound waves, the medium through which the waves travel plays a defined role; the velocities of both the source and the observer are measured relative to this medium. If the source moves towards the observer, successive wavefronts are emitted from locations progressively closer to the observer. As a result, the wavefronts become compressed, and the observer detects an increased frequency. Conversely, when the source moves away, the wavefronts spread out, leading to a lower observed frequency.
A typical example of this effect is the well-known change in pitch noticed as a vehicle sounding a horn or siren first approaches an observer, passes by, and then recedes. The received pitch is higher during approach, matches the emitted pitch at the exact moment of passing, and becomes lower once the vehicle moves away. This behaviour follows directly from the geometry of wave propagation and the relative nature of velocity between the source and the listener.
For waves that travel through a material medium, such as sound, both the source and the observer’s motion must be considered. For electromagnetic waves, including visible light, which propagate through a vacuum, the relative motion alone is relevant because the speed of light is constant and independent of medium.

Historical Development

Christian Doppler first proposed the effect in 1842 in a treatise discussing the coloured light emitted by binary stars and related astronomical bodies. His proposal carried significant implications for both acoustics and optics. In 1845, C. H. D. Buys Ballot tested Doppler’s idea for sound waves by arranging musicians playing a constant note to ride on a train, confirming experimentally that the pitch increased as the train approached an observer and decreased when it moved away.
Around the same time, further developments took place in understanding the behaviour of electromagnetic waves. In 1848, Hippolyte Fizeau explored Doppler-type effects in the context of optical waves. Although the term effet Doppler–Fizeau appeared in parts of Europe, the broader scientific community continued using the name originally attributed to Doppler. In Britain, John Scott Russell carried out additional acoustic studies in 1848, contributing to the expanding experimental support for the theory.
These early demonstrations paved the way for the effect’s widespread application across physics, engineering, and astronomy.

Classical Formulation and Mathematical Description

In classical physics, where the speeds of the source and the observer are much lower than the speed of the wave, a standard expression relates the observed frequency to the emitted frequency. For a wave with propagation speed c, an observer moving with speed v₍r₎ and a source moving with speed v₍s₎, the observed frequency f can be written as:

• f = (c ± v₍r₎) / (c ∓ v₍s₎) × f₀ *

Here, f₀ is the original emitted frequency. Sign conventions depend on whether motion is directed towards or away from the other party. When the observer moves towards the source, the numerator increases; when the source moves away from the observer, the denominator increases, reducing the observed frequency.
An alternative form expresses the relationship by considering the relative speed of wavefronts as perceived by the observer. This formulation lends itself well to understanding changes when the source approaches at an angle rather than directly. In such cases, the observed frequency varies continuously depending on the angle between the object’s path and the observer’s line of sight, producing a characteristic monotonic change in frequency as the object travels past.
For situations involving small velocities compared with the wave speed, a linear approximation may be used, yielding:

• Δf / f₀ ≈ Δv / c *

This expression provides a simplified yet accurate estimate for many everyday circumstances where the differences in speed are modest.

Consequences and Limiting Conditions

The classical equations assume that the source travels slower than the wave speed. When this condition is violated—such as an aircraft travelling faster than sound—the mathematical model predicts impossible outcomes, including infinite or negative frequencies. Physically, the system instead produces a shock wave, resulting in a sonic boom.
Analytical explorations by physicists such as John William Strutt (Lord Rayleigh) expanded the conceptual boundaries of Doppler theory. He theorised that if an observer could move away from a stationary sound source at twice the speed of sound, the sequence of musical notes emitted earlier would be heard backwards while retaining correct pitch and tempo. Although this scenario is practically unattainable in everyday circumstances, it illustrates the importance of considering wavefront perception in extreme conditions.

Applications in Acoustics

One of the most immediate and recognisable applications of the Doppler effect occurs in acoustic engineering. Sirens on emergency vehicles are designed with frequencies that emphasise the Doppler shift, enabling pedestrians and drivers to recognise approaching or receding vehicles quickly. The pitch change is not uniform during the vehicle’s passage. Instead, it varies due to the changing radial velocity component, which depends on the angle between the vehicle’s line of motion and the observer’s position. The abruptness or gradualness of the transition depends on how close the observer stands to the object’s path.
Musicians and audio engineers likewise account for Doppler shifts in live performances, particularly in environments where performers or sound sources move through a space, affecting how audiences perceive pitch and loudness.

The Doppler Effect in Astronomy

In astronomy, the Doppler effect serves as an essential tool for determining stellar and galactic motion. When electromagnetic waves from distant objects reach Earth, their spectral lines may shift towards the red or blue end of the spectrum. A redshift signifies that the object is moving away, while a blueshift indicates motion towards the observer. This technique allows astronomers to measure radial velocities, detect binary star systems, analyse the rotation of galaxies, and infer the expansion of the universe.
The relativistic version of the Doppler effect incorporates special relativity and is necessary for objects moving at substantial fractions of the speed of light. The calculations rely on precisely measured frequencies of known spectral lines, enabling high-accuracy assessments even when changes are extremely small.
Certain nearby stars exhibit pronounced radial velocities, which help astronomers reconstruct stellar motion within the local galactic neighbourhood. Such measurements contribute to broader research into galactic dynamics, star formation, and the distribution of mass in the cosmos.

Wider Scientific and Technological Applications

Beyond acoustics and astronomy, the Doppler effect is indispensable in diverse scientific and technological contexts. Doppler radar systems measure the velocity of meteorological phenomena such as rainstorms and tornadoes, providing crucial data for weather forecasting and emergency response. Medical ultrasound devices use Doppler shifts to assess blood flow through arteries and veins, enabling non-invasive diagnostics of cardiovascular conditions.
In transportation and engineering, the Doppler effect underpins technologies such as speed detection devices used by law enforcement and motion analysis tools in industrial environments. Even in everyday digital communication, variations of Doppler-based analysis contribute to precise timing and synchronisation systems.
