Circuit Breakers
A circuit breaker is an automatic electrical device designed to protect an electrical circuit from damage caused by excessive current resulting from overloads or short circuits. Its fundamental function is to detect fault conditions and interrupt the flow of current, thereby preventing potential hazards such as electrical fires, equipment damage, or system failures. Circuit breakers are essential safety components in residential, commercial, and industrial electrical systems.
Historical Background
The concept of interrupting electrical current to prevent damage dates back to the late nineteenth century, following the widespread adoption of electrical power systems. Early protective devices such as fuses were simple and effective but had to be replaced after each operation.
The first recognisable circuit breaker was developed by Thomas Edison in 1879, designed to protect lighting circuits. Over time, the demand for reusable and more reliable protection led to innovations in automatic switching mechanisms. By the mid-twentieth century, circuit breakers had become standard components in electrical networks, with continuous advances in design and materials improving their speed, durability, and current-handling capacity.
Principle of Operation
Circuit breakers operate on the principle of current interruption. Under normal conditions, current flows through the breaker’s conductive contacts. When a fault occurs—such as an overload or short circuit—the breaker detects abnormal current flow and automatically opens its contacts to interrupt the circuit.
The breaking process involves three main stages:
- Detection: The breaker senses an overcurrent or fault through thermal or electromagnetic means.
- Interruption: The contacts separate to stop current flow, creating and extinguishing an electric arc.
- Resetting: Once the fault is cleared, the breaker can be manually or automatically reset to resume operation.
Construction and Components
A typical circuit breaker consists of several key components:
- Frame or Enclosure: Provides mechanical support and insulation.
- Contacts: Conduct current and separate to interrupt the circuit when triggered.
- Operating Mechanism: Includes springs, levers, or solenoids that actuate contact movement.
- Trip Unit: Detects faults and initiates the tripping mechanism.
- Arc Extinguishing Chamber: Quenches the electric arc generated during contact separation.
In modern breakers, advanced materials and design techniques are employed to enhance arc suppression, reliability, and safety.
Types of Circuit Breakers
Circuit breakers are classified based on their construction, application, and arc extinguishing medium.
1. Based on Installation and Current Rating:

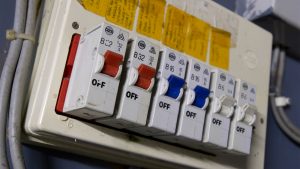

- Miniature Circuit Breaker (MCB): Used in low-voltage domestic and commercial circuits up to 100 A. Protects against overloads and short circuits.
- Moulded Case Circuit Breaker (MCCB): Handles higher currents (up to 2,500 A) in industrial systems. Provides adjustable trip settings.
- Air Circuit Breaker (ACB): Common in low-voltage power distribution, using air to extinguish the arc.
- Oil Circuit Breaker (OCB): Uses insulating oil as the arc-quenching medium; mainly used in high-voltage systems.
- Vacuum Circuit Breaker (VCB): Employs vacuum insulation to quench arcs; widely used in medium-voltage applications.
- SF₆ Circuit Breaker: Uses sulphur hexafluoride gas, which provides superior arc extinguishing and insulation properties, suitable for high-voltage transmission systems.
2. Based on Operation:
- Manual Circuit Breakers: Operated by hand; commonly used in small circuits.
- Automatic Circuit Breakers: Operate automatically when a fault is detected; used in most electrical systems.
3. Based on Tripping Mechanism:
- Thermal Circuit Breakers: Operate on heat generated by overload current.
- Magnetic Circuit Breakers: Respond to electromagnetic force generated by high current.
- Thermal-Magnetic Circuit Breakers: Combine both thermal and magnetic principles for comprehensive protection.
Working Mechanism
Thermal Operation: When current exceeds the rated value, a bimetallic strip inside the breaker heats up, bends, and triggers the tripping mechanism, opening the contacts. This protects against prolonged overload conditions.
Magnetic Operation: During a short circuit, a sudden surge in current generates a strong magnetic field in a solenoid coil. This magnetic force actuates a plunger that instantly separates the contacts, providing rapid fault isolation.
In both cases, once the fault is removed, the breaker can be reset manually or automatically to restore circuit continuity.
Applications
Circuit breakers are used extensively across all sectors of the electrical industry:
- Residential: Protect household wiring and appliances from overloads and short circuits.
- Commercial: Installed in office buildings, malls, and hospitals for distribution safety.
- Industrial: Protect motors, machinery, and power distribution systems from electrical faults.
- Transmission and Distribution: Employed in substations to protect transformers and grid lines.
- Automotive and Marine: Provide overcurrent protection in vehicles, ships, and aircraft.
Their adaptability and reliability make them indispensable for modern electrical infrastructure.
Advantages of Circuit Breakers
Circuit breakers offer several advantages over traditional fuses and other protection devices:
- Reusability: Can be reset after tripping, unlike fuses that must be replaced.
- Precision: Offer adjustable tripping characteristics and faster fault response.
- Safety: Provide high reliability in preventing electrical fires and equipment damage.
- Remote Operation: Many advanced breakers can be operated and monitored remotely.
- Maintenance Efficiency: Easy to inspect, reset, and maintain.
In high-voltage networks, circuit breakers are often equipped with protective relays and digital monitoring systems, allowing real-time fault diagnosis and coordination.
Limitations and Challenges
Despite their advantages, circuit breakers have certain limitations:
- Higher Initial Cost: More expensive than simple fuses.
- Complexity: Require periodic inspection, maintenance, and calibration.
- Mechanical Wear: Frequent operation may lead to contact erosion or mechanical fatigue.
- Environmental Concerns: SF₆ gas breakers, though effective, use a potent greenhouse gas.
To address such challenges, newer designs focus on sustainability, compactness, and electronic control integration.
Modern Developments
Technological advancements have led to the development of smart circuit breakers capable of digital communication and automated control. These breakers integrate with Internet of Things (IoT) systems for:
- Real-time monitoring of current and voltage.
- Predictive maintenance through fault analytics.
- Remote operation and diagnostics.
- Enhanced energy management in smart grids.
Environmentally friendly alternatives to SF₆ gas are also being developed to reduce carbon impact in high-voltage systems.
Importance in Electrical Safety
Circuit breakers play a pivotal role in ensuring electrical safety by preventing hazards caused by overcurrent, short circuits, and ground faults. They form part of protective coordination systems, working alongside relays, fuses, and earthing devices to safeguard life and property.
