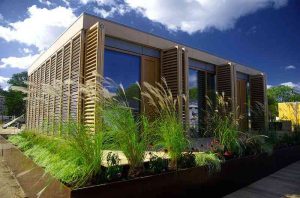

Passive Solar Building Design

Passive solar building design refers to a set of architectural strategies that enable buildings to collect, store and distribute solar energy in the form of heat during colder seasons while preventing excessive heat gain during warmer periods. Unlike active solar systems, passive design techniques do not rely on mechanical or electrical devices. Instead, the building’s structural elements and layout work together with natural climatic conditions to achieve energy efficiency, human comfort and reduced environmental impact.
The fundamental principle behind passive solar design is the careful integration of architecture with local climate. This requires a detailed site analysis, including an understanding of solar path, seasonal temperature patterns, prevailing winds and surrounding environmental features. When applied effectively, passive solar design reduces reliance on conventional heating and cooling systems, lowers operational costs and enhances building performance throughout the year.

Core Principles and Techniques

Passive solar design is founded upon the strategic use of building components to optimise solar energy utilisation. Several key elements are considered in creating a successful passive solar environment:

• Glazing and window placement: Orientation, size and type of windows determine the amount of solar heat entering a building. South-facing glazing (in the Northern Hemisphere) is typically maximised for winter heat gain while shading devices protect against overheating in summer.
• Thermal mass: Materials with high heat capacity, such as concrete, stone or water, are used to absorb, store and release heat gradually. This reduces temperature fluctuations and improves comfort.
• Insulation and airtightness: High-quality insulation minimises unwanted heat loss in winter and heat gain in summer.
• Shading: Overhangs, louvers, shutters and vegetation provide seasonal shading, allowing sunlight in winter while blocking it during hotter months.
• Ventilation: Natural ventilation through operable windows, solar chimneys or stack effect designs enhances airflow and assists passive cooling.

Passive Solar Energy Gain and Cooling

Passive solar technologies harness sunlight without mechanical intervention. These technologies provide heat for both indoor spaces and water, drive natural ventilation and stabilise indoor temperature.
Common passive solar systems include:

• Direct gain systems, where sunlight enters through glazing and warms interior spaces and thermal mass.
• Indirect gain systems, such as Trombe walls, where heat is collected and transferred through thermal mass.
• Isolated gain systems, including sunrooms or solariums positioned on the equator-facing side of a structure.
• Solar water heating through thermosiphon systems, which rely on natural convection to circulate water.
• Solar chimneys, which improve ventilation by exploiting rising warm air.
• Earth-sheltered construction, where soil provides stable thermal conditions.

Passive cooling applies similar principles to reduce indoor temperatures. Techniques include shading, cross-ventilation, night-time cooling, reflective materials and ventilation chimneys. In some cases, minimal mechanical energy is used to operate shutters, vents or night insulation, but these systems remain fundamentally passive.
Low-temperature applications such as space heating, water heating and moderate food preparation (e.g., solar cookers) have proven the most effective uses of passive solar systems over long periods.

Scientific Foundations

The scientific basis for passive solar design is grounded in multiple disciplines:

• Climatology, for understanding solar radiation, weather patterns and insolation levels.
• Thermodynamics, especially conduction, convection and radiation principles governing heat flow in buildings.
• Fluid mechanics, explaining natural air movement and ventilation without mechanical aids.
• Human thermal comfort studies, which examine how temperature, humidity, air movement and radiant heat impact well-being.
• Psychrometrics and enthalpy control, applied to ventilated spaces, greenhouses and sunrooms.

Building performance depends on the site’s latitude, seasonal sun paths, cloud patterns, temperature extremes and prevailing winds. Window-to-wall ratios, construction materials, thermal mass placement and insulation all play critical roles in regulating heat transfer.
Effective passive solar design often requires careful system engineering and simulation. Tools such as the US Department of Energy’s EnergyPlus enable detailed modelling of energy flows, thermal performance and cost optimisation. Numerical simulation assists designers in making informed decisions about glazing, insulation, mass distribution and shading geometry.

Historical Development and Modern Applications

Since the 1970s energy crisis, passive solar design has undergone continuous refinement. Early intuition-based attempts frequently failed due to inadequate understanding of thermal behaviour and solar geometry. Lessons learned from these experiments contributed to a more scientific and rigorous approach.
Advancements in thermal imaging and post-construction audits have provided valuable feedback about heat loss and performance shortcomings. Digital thermographic cameras help identify poorly performing elements, such as inadequately insulated skylights or roof-angled glazing that causes heat loss in winter and overheating in summer.
Despite the availability of proven scientific methods and economic benefits, cultural and professional inertia has slowed widespread adoption. Integrating passive solar design within mainstream architecture remains a challenge due to limited training and the complex multidisciplinary nature of the field. However, architectural science and architectural technology programmes increasingly incorporate energy engineering principles into their curricula.
Policy and research initiatives led by energy agencies and academic institutions have encouraged the progression toward zero-energy buildings, where passive solar design forms a foundational component. If adopted broadly from the 1980s onwards, such principles could have yielded substantial national energy savings.

Solar Path and Seasonal Considerations

A central factor in passive solar design is the variation in the sun’s path throughout the year. This variation stems from the tilt of Earth’s axis and differs for each latitude. In non-tropical northern latitudes, the sun appears lower in the sky during winter, rising and setting further south, while in summer it traces a higher, longer arc.
This seasonal difference in solar altitude—approximately 47 degrees between winter and summer—provides the basis for solar-oriented building design. By analysing degree-day requirements and local climate data, designers can determine when solar gain is advantageous and when shading is required. Adjustable devices such as shutters, blinds and window quilts help fine-tune solar gain as conditions change.
Room placement also affects comfort and energy performance. Common recommendations include locating daytime living spaces toward solar noon orientation and placing sleeping areas on the cooler, shaded side of the building.
Tools such as heliodons and advanced 3D simulation software enable designers to visualise and quantify solar exposure throughout the year.

Heat Transfer and Thermal Comfort

Building heat transfer occurs through:

• Conduction, through walls, roofs, floors and glazing
• Convection, via air movement affected by wind, openings and buoyancy forces
• Radiation, from sunlight and warm surfaces
