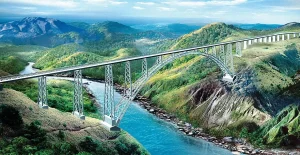

Chenab Rail Bridge

The Chenab Rail Bridge is a monumental engineering achievement in India, representing one of the most ambitious infrastructure projects ever undertaken in the country. It spans the deep gorge of the Chenab River in the Reasi district of the Union Territory of Jammu and Kashmir. Designed as part of the Udhampur–Srinagar–Baramulla Rail Link (USBRL) project, the bridge connects Bakkal and Kauri, providing a crucial railway link between the Kashmir Valley and the rest of India.
Standing as one of the world’s highest railway bridges, the Chenab Rail Bridge is a symbol of India’s engineering excellence and a milestone in modern transportation infrastructure.

Background and Purpose

The Chenab Rail Bridge was conceived to establish a direct railway connection to the Kashmir Valley, integrating it into India’s national railway network. The terrain of the Himalayas, marked by steep slopes, deep gorges, and seismic activity, posed formidable challenges to engineers and planners.
This bridge forms a vital part of the USBRL project, which seeks to promote socio-economic integration and strategic connectivity. The project holds both civilian and defence significance, as it facilitates the movement of goods, people, and security forces across the mountainous region, reducing dependence on seasonal road routes prone to landslides and snow blockages.

Design and Structural Features

The Chenab Rail Bridge is designed as a steel arch bridge carrying a single railway track over the Chenab River. Its scale and design make it an extraordinary engineering feat.

• Total Length: Approximately 1,315 metres.
• Main Arch Span: 467 metres.
• Height above River Bed: 359 metres, making it taller than the Eiffel Tower in Paris.
• Type: Arch-shaped steel bridge with a composite deck supported on steel trusses.
• Design Life: 120 years.
• Wind Resistance: Designed to withstand wind speeds up to 260 km/h.
• Seismic Resistance: Engineered to endure high seismic activity typical of the Himalayas.

The deck of the bridge is supported by an arch composed of two ribs, connected by bracings. This design distributes weight efficiently and allows flexibility under dynamic loads, including high-speed trains and environmental forces such as wind and earthquakes.

Construction and Engineering Challenges

The construction of the Chenab Rail Bridge began in 2004 under the supervision of Konkan Railway Corporation Limited (KRCL), with collaboration from various national and international engineering firms. Due to the difficult Himalayan terrain and harsh climatic conditions, the project faced multiple interruptions and redesigns before nearing completion in the early 2020s.
Major challenges included:

• Extreme Geography: The bridge site lies in a deep gorge with steep cliffs and unstable slopes, demanding complex foundation work.
• High Winds and Weather Extremes: Strong gusts and sub-zero temperatures made welding and assembly operations difficult.
• Seismic Sensitivity: Special provisions were made for earthquake-resistant design.
• Material Transport: Steel components were prefabricated elsewhere and transported to the site using specially constructed cable cranes and ropeways.
• Worker Safety: Thousands of engineers and workers were employed under stringent safety protocols due to the extreme height and remote location.

The critical milestone was achieved in March 2021, when the two halves of the steel arch were successfully joined, completing the main structural framework of the bridge.

Materials and Technology

• Steel Used: Over 25,000 tonnes of high-strength steel were used in the bridge’s construction.
• Welding Technology: Advanced automatic and robotic welding systems ensured precision in high-altitude conditions.
• Monitoring Systems: Sensors were installed to monitor wind pressure, seismic forces, and structural health.
• Protection Measures: The steel is coated with special corrosion-resistant paint, ensuring a lifespan of over a century even in harsh climatic conditions.

The project exemplifies a combination of Indian engineering innovation and international expertise, meeting global standards of construction and safety.

Economic and Strategic Importance

The Chenab Rail Bridge holds immense strategic and developmental significance:

• National Connectivity: It forms a critical link in the 272-km Udhampur–Srinagar–Baramulla railway line, connecting Kashmir with the rest of India through an all-weather route.
• Economic Growth: Improved access will enhance trade, tourism, and employment opportunities in the region, stimulating the local economy.
• Social Integration: The bridge strengthens socio-economic ties between the people of Jammu, Kashmir, and other parts of India.
• Defence Importance: The railway link will enable faster deployment of resources and troops in strategically sensitive areas.

Architectural and Aesthetic Aspects

Beyond its engineering significance, the Chenab Rail Bridge is also an architectural marvel blending functionality with aesthetic design. Its curved arch and elegant trusswork make it one of the most visually striking bridges in the world.
At night, the bridge is illuminated with programmable lighting systems, enhancing its grandeur and turning it into a tourist attraction. Viewing decks and approach roads have been designed to accommodate visitors and enhance tourism in the Reasi region.

Environmental Considerations

Given the bridge’s location in a fragile Himalayan ecosystem, several environmental protection measures were implemented:

• Construction activities were carefully planned to minimise deforestation and soil erosion.
• Spoil disposal and excavation were managed under strict ecological guidelines.
• Efforts were made to preserve the natural flow of the Chenab River and nearby habitats.
• Post-construction landscape restoration is being carried out to maintain ecological balance.

Impact and Benefits

• Reduced Travel Time: Once operational, the rail link will drastically cut travel time between Jammu and Baramulla.
• Boost to Tourism: Improved accessibility will promote religious and adventure tourism across the region, including pilgrimages to Vaishno Devi and Amarnath.
• Regional Development: Enhanced mobility will lead to infrastructure growth in healthcare, education, and trade.
• Engineering Benchmark: The project establishes new standards for bridge construction in difficult terrains worldwide.

Limitations and Challenges Ahead

Despite its success, maintaining and operating the Chenab Bridge poses future challenges:

• Maintenance Costs: Regular inspection, corrosion control, and structural maintenance in high-altitude conditions will be expensive.
• Weather Vulnerability: Snow, high winds, and seismic events will require constant monitoring.
• Operational Safety: Strict safety protocols will be needed for train operations due to the altitude and terrain.

Significance and Legacy

The Chenab Rail Bridge is not merely a transport structure but a symbol of India’s engineering progress and national integration. It demonstrates the country’s ability to execute complex infrastructure projects under the most challenging conditions.
Its successful completion will stand as a global benchmark in steel arch bridge construction, highlighting India’s commitment to innovation, connectivity, and sustainable development in mountainous regions.
