Agonic Line

The agonic line is an important concept in geomagnetism and navigation, referring to an imaginary line on the Earth’s surface where the magnetic declination is zero. Along this line, the magnetic north (the direction indicated by a magnetic compass) and the true north (the direction toward the geographic North Pole) coincide perfectly. In other words, a compass needle on the agonic line points directly to the true north, requiring no correction for magnetic variation.

Definition and Concept

The Earth’s magnetic field is not perfectly aligned with its rotational (geographic) axis. As a result, the direction a compass points—towards the magnetic north pole—usually differs from the direction of true north. This difference is known as magnetic declination or magnetic variation.

• East Declination: When magnetic north lies east of true north.
• West Declination: When magnetic north lies west of true north.
• Zero Declination: Occurs along the agonic line, where there is no angular difference between magnetic and geographic north.

Thus, the agonic line represents the boundary between areas of eastward and westward magnetic declination.

Historical Background

The concept of the agonic line was first recognised in the early 18th century, following improvements in magnetic compass usage for navigation. Early explorers and navigators, such as Christopher Columbus, noticed compass discrepancies that varied geographically. The systematic study of magnetic declination led to the identification of lines of equal declination—called isogonic lines—and, within them, the unique line of zero declination: the agonic line.
The first comprehensive mapping of agonic and isogonic lines was carried out in the 19th century by scientists such as Edmond Halley, who produced magnetic charts for the Atlantic Ocean, significantly improving maritime navigation.

Characteristics of the Agonic Line

• It is an irregular, shifting line that moves over time due to changes in the Earth’s magnetic field.
• The line separates regions where the compass needle deviates eastwards from those where it deviates westwards.
• The position of the agonic line varies with longitude, latitude, and time, influenced by secular variation—the slow change in the Earth’s magnetic field caused by movements within the molten outer core.

In many places, the agonic line crosses both land and ocean, making it relevant for terrestrial and maritime navigation.

Movement and Temporal Variation

The agonic line is not fixed; it migrates gradually over decades and centuries. This movement occurs due to the dynamic nature of the geomagnetic field, which is generated by convective motions in the Earth’s liquid iron core.
For example:

• In the United States, the agonic line has historically moved westward. Around the early 1900s, it passed through Detroit, later shifting toward Chicago, and more recently near the Mississippi Valley.
• In Europe, the line has also drifted, having once passed through London in the 17th century, but now lying to the west of the British Isles.
• Globally, agonic lines have shifted by hundreds of kilometres over recorded history.

These variations are monitored through geomagnetic observatories and satellite measurements, such as those from the European Space Agency’s Swarm mission, which maps the Earth’s magnetic field in detail.

Representation on Maps

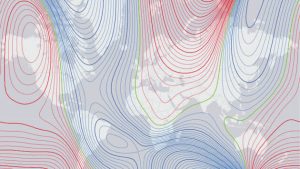

On magnetic declination maps, the agonic line is shown as the zero-degree isogonic line.

• Lines to the east of it indicate positive (east) declination values.
• Lines to the west show negative (west) declination values.

Such maps are updated periodically to reflect changes in the Earth’s magnetic field. Modern navigational charts, including those used in aviation and maritime operations, incorporate these updates to ensure accurate compass corrections.

Importance and Applications

The agonic line plays a significant role in navigation, surveying, and geomagnetic research:

• Navigation: Along the agonic line, a compass gives a true bearing without the need for magnetic correction. Navigators elsewhere must apply a correction based on the local declination.
• Cartography and Surveying: Surveyors use declination data (including the agonic line) to align maps accurately with true north.
• Aviation and Maritime Operations: Pilots and sailors rely on declination charts to calibrate instruments and maintain correct headings.
• Geomagnetic Studies: Tracking the agonic line’s movement provides insights into changes in the Earth’s magnetic field and core dynamics.

Related Terms

• Isogonic Lines: Lines connecting points of equal magnetic declination on the Earth’s surface.
• Magnetic Declination: The angular difference between magnetic north and true north.
• Magnetic Inclination (Dip): The angle made by the magnetic field with the horizontal plane at a particular location.
• Magnetic Anomaly: A local deviation in the magnetic field caused by variations in the Earth’s crustal composition.

Together, these concepts form the foundation of geomagnetism, a key area of physical geography and geophysics.

Global Examples

Some notable examples of the agonic line’s position in recent decades include:

• Crossing parts of Greenland, Iceland, and the Atlantic Ocean.
• Passing through the Gulf of Mexico region and parts of South America.
• Traversing sections of Africa and the Southern Indian Ocean.

As of the early 21st century, the line continues to drift westward, with noticeable movement across North America and the Atlantic basin.

Scientific Significance

The agonic line is a useful marker for studying the Earth’s geomagnetic secular variation—the long-term drift of magnetic poles and field lines. Tracking its position contributes to:

• Understanding core dynamics and magnetic pole motion.
• Improving global geomagnetic models such as the World Magnetic Model (WMM) and International Geomagnetic Reference Field (IGRF).
• Supporting accurate geolocation, navigation, and space weather forecasting.
