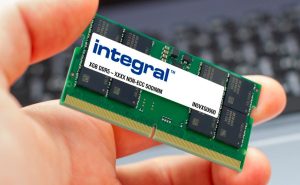

SDRAM and DDR SDRAM

Synchronous Dynamic Random-Access Memory (SDRAM) and Double Data Rate SDRAM (DDR SDRAM) are two major types of computer memory technologies that revolutionised data processing speed and efficiency in computing systems. Both are forms of volatile memory, meaning they require power to maintain stored information. They have been widely used in personal computers, servers, and embedded systems since the late 1990s, forming a crucial part of modern memory architecture.

Background and Evolution

Before the introduction of SDRAM, most systems used Asynchronous DRAM, where the memory operated independently of the system clock. As computing speeds increased, synchronisation became essential to maintain performance efficiency. SDRAM was developed in the early 1990s to solve this issue by synchronising the memory’s operation with the CPU clock, thereby allowing the processor to predict data access timings accurately.
SDRAM (Synchronous DRAM) was first standardised by JEDEC in 1993 and became widely used by the late 1990s, replacing earlier asynchronous designs. However, as processor speeds and data demands grew rapidly, SDRAM’s single data rate limitation became a bottleneck. This led to the development of DDR SDRAM (Double Data Rate SDRAM) around 1998, which doubled the data transfer rate without increasing the clock frequency.
Over the years, DDR technology evolved through successive generations — DDR2, DDR3, DDR4, and DDR5 — each offering higher bandwidth, reduced power consumption, and increased reliability.

Structure and Working Principle

Both SDRAM and DDR SDRAM share similar basic architecture. They consist of memory cells arranged in a matrix of rows and columns, each storing a bit of data using a capacitor and a transistor. The memory controller accesses these cells through address lines and control signals.

• SDRAM operates synchronously with the system clock, ensuring predictable timing. Data is transferred once per clock cycle, either during the rising or falling edge.
• DDR SDRAM, as its name suggests, performs data transfers on both the rising and falling edges of the clock cycle, effectively doubling the data throughput without increasing the clock frequency.

The basic operations include:

1. Row activation, where a row is opened for access.
2. Read/Write commands, to fetch or store data.
3. Precharge, which closes the open row, preparing the memory for the next operation.

This sequence is controlled by specific timing parameters such as CAS latency (CL), RAS to CAS delay (tRCD), and Row Precharge Time (tRP).

Types and Generations of DDR SDRAM

DDR SDRAM has evolved through several generations, each improving upon speed, efficiency, and power characteristics:

• DDR (DDR1): Operates at 2.5V, transfers data twice per clock cycle, and has a typical clock range of 100–200 MHz (effective 200–400 MHz).
• DDR2: Introduced in 2003, it doubled the prefetch buffer size (from 2-bit to 4-bit), allowing higher data rates (400–1066 MHz effective) with lower voltage (1.8V).
• DDR3: Further reduced power usage (1.5V) and increased data rates to 2133 MHz. It became standard for most computers in the late 2000s.
• DDR4: Introduced around 2014, featuring improved signal integrity, higher densities, and data rates up to 3200 MHz. Operates at 1.2V.
• DDR5: The latest generation, launched commercially around 2020, supports speeds beyond 4800 MHz and introduces on-die error correction and improved power management.

Key Features and Advantages

SDRAM:

• Synchronous operation with CPU clock.
• Burst mode for sequential data access.
• Predictable timing for improved performance.
• Compatible with a wide range of systems.

DDR SDRAM:

• Double data rate transfer improves throughput.
• Lower voltage reduces power consumption.
• Enhanced signal integrity and data reliability.
• Multi-bank architecture allows concurrent access, improving overall performance.
• High scalability for modern systems.

Performance and Applications

The main performance difference lies in the data transfer rate. SDRAM transfers one word per clock cycle, while DDR SDRAM transfers two. Consequently, DDR SDRAM can achieve approximately double the bandwidth at the same clock frequency.
SDRAM was widely used in early Pentium-class systems and embedded devices, whereas DDR SDRAM and its successors dominate modern desktops, laptops, gaming consoles, and servers. In addition, mobile variants such as LPDDR (Low Power DDR) are used in smartphones and tablets, optimised for power efficiency rather than raw speed.

Technical Specifications Comparison

Advantages and Limitations

Advantages of SDRAM:

• Reliable and mature technology.
• Cost-effective for low-performance systems.
• Predictable performance under synchronous conditions.

Limitations of SDRAM:

• Lower bandwidth compared to modern alternatives.
• Higher power consumption relative to DDR.
• Inefficient for high-speed computing tasks.

Advantages of DDR SDRAM:

• Higher data transfer rates and bandwidth.
• Lower voltage operation for energy efficiency.
• Improved multitasking and responsiveness.
• Continuous improvement through successive generations.

Limitations of DDR SDRAM:

• Compatibility limited to specific motherboard types.
• More complex design and timing control.
• Increased cost in newer generations.

Significance in Modern Computing

SDRAM and DDR SDRAM technologies have played a pivotal role in the evolution of computing hardware. SDRAM established the foundation for synchronous memory operation, aligning with CPU clocks to enhance predictability and efficiency. DDR SDRAM built upon this principle, enabling exponentially higher data throughput, which became essential for multitasking, gaming, and high-performance computing.
