Legged Squad Support System

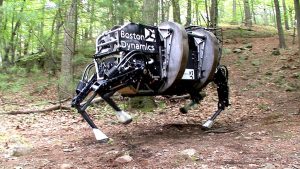

The Legged Squad Support System (LS3) was a quadrupedal robotic platform developed by Boston Dynamics, in collaboration with the United States Defence Advanced Research Projects Agency (DARPA) and the U.S. Marine Corps. Designed as a robotic pack animal capable of navigating rough terrain while carrying heavy loads, the LS3 represented a major step in the development of autonomous systems intended to assist soldiers in combat and field operations. Although the project was eventually discontinued, it remains an influential milestone in military robotics and the broader study of robotic locomotion.

Background and Development

The Legged Squad Support System emerged from DARPA’s broader vision of developing autonomous systems to reduce the physical burden on soldiers and improve mobility in challenging environments. The project followed the success of Boston Dynamics’ earlier robot, BigDog, which had demonstrated the feasibility of dynamic legged locomotion. BigDog could carry loads of up to 150 kilograms and traverse snow, mud, and rocky terrain using a system of hydraulically actuated legs controlled by advanced sensors and balance algorithms.
Building upon this foundation, DARPA funded the LS3 project in 2010 with the aim of creating a more advanced, militarised version of BigDog. The design objective was to produce a robot capable of autonomously following a squad of soldiers, transporting equipment, and operating for extended periods without direct human control. The system needed to handle both rough and urban terrain, tolerate variable weather conditions, and function effectively in noisy or complex environments.

Design and Technical Specifications

The LS3 was a four-legged, hydraulically powered robot approximately 1.3 metres tall, 3 metres long, and weighing around 500 kilograms when unloaded. Its design was inspired by the biomechanics of animals such as horses and mules, which provided natural models for balance and stability. The robot’s main features included:

• Load Capacity: Capable of carrying up to 180 kilograms of equipment such as ammunition, water, and supplies.
• Range and Endurance: Operated over a range of about 32 kilometres on a single tank of fuel, with an endurance of 24 hours.
• Speed: Moved at up to 10 kilometres per hour on flat ground and maintained stability on slopes of up to 30 degrees.
• Navigation and Control: Equipped with GPS, LIDAR, stereo vision, and various onboard sensors enabling autonomous navigation and obstacle avoidance.
• Human Interaction: Designed to recognise and follow human operators using voice commands or visual tracking systems.

The LS3’s locomotion system used hydraulics to power its legs, providing a high degree of flexibility and dynamic motion control. The onboard computer constantly adjusted the robot’s posture and movement to maintain balance, even when subjected to external forces such as kicks or uneven terrain—demonstrations that became emblematic of Boston Dynamics’ robotics capabilities.

Operational Testing and Field Deployment

Field testing of the LS3 began in 2012 under the supervision of the U.S. Marine Corps Warfighting Laboratory. Trials were conducted in various terrains, including rocky paths, forests, and desert environments. The robot was expected to act as a “mechanical mule,” reducing the physical load on infantry units by carrying heavy gear and supplies.
During these trials, LS3 demonstrated remarkable capabilities, such as autonomous movement through GPS-guided waypoints, following soldiers using vision systems, and adapting to variable terrain conditions. It was able to recover from slips, walk on icy or muddy ground, and maintain a steady pace in coordination with human troops.
However, several limitations emerged during the trials. The system’s high noise level, caused by its hydraulic engine, made it unsuitable for stealth operations. Additionally, the robot’s complex maintenance requirements, large fuel consumption, and heavy weight posed logistical challenges in combat scenarios. These drawbacks ultimately hindered its operational deployment despite its technical sophistication.

Advantages and Innovations

The LS3 project introduced several pioneering innovations in the field of robotics and autonomous mobility:

• Dynamic Stability: Demonstrated advanced balance control comparable to biological systems, paving the way for modern dynamic robots.
• Autonomous Behaviour: Showcased the use of computer vision and artificial intelligence for terrain mapping, route planning, and human following.
• Payload Support: Offered the ability to significantly reduce soldiers’ carried loads, addressing one of the key physical challenges in field operations.
• Adaptive Mobility: Capable of operating in environments inaccessible to wheeled or tracked vehicles, including forests, mountains, and rubble-strewn terrain.

These technological achievements influenced the design of later autonomous ground systems and commercial robotics, particularly in logistics and exploration applications.

Challenges and Criticism

Despite its innovative engineering, the LS3 faced practical limitations that prevented its integration into military service. The primary issue was acoustic noise, as the robot’s internal combustion engine and hydraulic pumps generated sound levels that could compromise tactical stealth. Efforts to reduce noise through design modifications proved technically difficult without sacrificing power output or mobility.
Another issue was operational complexity. The system required specialised maintenance and technical expertise, which were not always available in field conditions. Additionally, the cost of production and maintenance was prohibitively high compared with more conventional supply methods such as all-terrain vehicles or aerial drones.
Critics also noted that the LS3’s autonomy, though advanced for its time, still required close human supervision to avoid navigation errors or collisions. These constraints led DARPA and the U.S. Marine Corps to conclude that LS3 was not yet practical for combat deployment.

Legacy and Influence on Robotics

Although the Legged Squad Support System programme was officially shelved in 2015, its influence continues to resonate in both military and civilian robotics. The technological innovations developed during the project contributed to subsequent Boston Dynamics robots such as Spot and SpotMini, which feature improved balance, quieter operation, and enhanced autonomy.
The LS3 project also advanced research in robotic locomotion, perception, and human-robot interaction. It demonstrated the feasibility of legged robots performing practical tasks in natural environments, inspiring further work in search-and-rescue, construction, and agricultural robotics. Defence agencies around the world, including those in Japan, South Korea, and the United Kingdom, have drawn upon the LS3’s research to explore new forms of autonomous mobility for logistics and reconnaissance.

Broader Significance

The Legged Squad Support System symbolised a transitional phase in robotics—moving from experimental prototypes toward practical field applications. While it fell short of operational readiness, it represented the potential for robotic assistance in reducing human workload and risk in military contexts. More broadly, LS3 exemplified the fusion of mechanical engineering, artificial intelligence, and biological inspiration, establishing foundational principles that continue to guide robotics research in the twenty-first century.
