Cosmic ray muon tomography

Cosmic ray muon tomography is an advanced imaging technique that utilises naturally occurring cosmic ray muons to probe the internal structure of large and dense objects. Unlike conventional X-rays, which are limited in penetration depth, muons can traverse significant amounts of matter, making them invaluable for examining thick or shielded materials. This non-invasive and passive method has found applications in fields as diverse as nuclear security, archaeology, geology, and industrial inspection.

Background: Cosmic Rays and Muon Production

Cosmic rays are high-energy particles, primarily protons and atomic nuclei, that originate from outer space, such as the Sun, distant supernovae, or other astrophysical phenomena. When these cosmic rays strike the Earth’s upper atmosphere, they collide with atmospheric nuclei, producing a cascade of secondary particles known as extensive air showers.
Among these secondary particles are muons — elementary particles similar to electrons but with about 200 times greater mass. Due to their high energy (ranging from a few GeV to several TeV) and relatively long lifetime (around 2.2 microseconds at rest), muons can penetrate hundreds of metres of rock or several metres of dense material such as lead or steel before decaying or being absorbed.
At sea level, approximately 10,000 muons per square metre per minute reach the Earth’s surface, travelling predominantly in downward trajectories. This continuous and natural flux forms the basis of muon-based imaging.

Principles of Muon Tomography

Muon tomography (also called muography) operates on the principle of muon scattering and absorption as these particles pass through matter. When muons encounter different materials, they lose energy or change direction depending on the atomic number (Z), density, and thickness of the material.
There are two primary methods of muon imaging:

1. Muon Transmission Imaging:
   • Measures the attenuation (reduction) in muon flux after passing through an object.
   • Denser or thicker regions absorb more muons, resulting in fewer detections.
   • The resulting data are used to construct density maps, similar to X-ray radiographs.
2. Muon Scattering Tomography:
   • Analyses the deflection angles of muons caused by multiple Coulomb scattering inside the target material.
   • Heavier elements (like uranium or lead) cause greater scattering than lighter materials.
   • This technique is particularly effective for identifying high-Z materials hidden within complex structures.

By recording the trajectories of incoming and outgoing muons using particle detectors placed around the object, scientists can reconstruct a three-dimensional image of its interior.

Detection and Instrumentation

A typical muon tomography system consists of:

• Tracking Detectors: Usually made of scintillating fibres, gas chambers, or drift tubes that detect the position and direction of muon tracks.
• Data Acquisition System: Records the time and location of muon events for computational processing.
• Reconstruction Algorithms: Apply statistical and tomographic methods to create density or scattering images.

The resolution and accuracy of muon tomography depend on factors such as detector sensitivity, exposure time, and the geometry of the detection setup. Larger detectors and longer data collection periods provide higher-quality images.

Historical Development

The concept of using cosmic ray muons for imaging dates back to the 1950s. In 1955, E.P. George first proposed using muon attenuation to measure rock overburden in tunnels. The technique gained fame when Luis W. Alvarez and his team applied it in 1965 to search for hidden chambers within the Pyramid of Khafre in Egypt. Although no undiscovered chambers were found, the experiment demonstrated the feasibility of muon radiography.
Subsequent technological advances in particle detection and data analysis during the late twentieth century significantly improved muon imaging’s resolution and scope. In recent decades, it has become a powerful tool in applied physics, geoscience, and security engineering.

Applications of Muon Tomography

1. Nuclear Security and Non-Proliferation:

• Used to detect illicit nuclear materials (e.g., uranium, plutonium) concealed within shipping containers or vehicles.
• Muon scattering tomography can differentiate high-Z nuclear materials from benign substances like iron or concrete.
• This passive detection method is safer and more reliable than traditional radiographic scanning since it requires no artificial radiation sources.

2. Geological and Volcanic Studies:

• Enables imaging of volcano interiors to map magma chambers and density variations.
• For example, muography has been successfully applied to Mount Asama and Mount Vesuvius, providing insights into volcanic activity and eruption prediction.
• The method has also been used in studying cave systems, fault lines, and mineral deposits.

3. Archaeology:

• Allows non-destructive exploration of ancient structures.

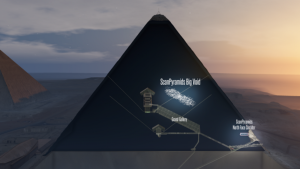

• Modern muon tomography has revealed previously unknown cavities in the Great Pyramid of Giza, building upon Alvarez’s pioneering work.

4. Civil and Industrial Engineering:

• Applied in assessing the integrity of large-scale infrastructure such as nuclear reactors, tunnels, dams, and archaeological monuments.
• In nuclear decommissioning, muon tomography assists in mapping fuel distribution within damaged reactor cores, such as at Fukushima Daiichi in Japan.

5. Environmental and Mining Studies:

• Used to evaluate the internal structure of glaciers, waste repositories, and ore bodies, offering a safer and more cost-effective alternative to drilling or seismic surveys.

Advantages of Muon Tomography

Muon tomography possesses several advantages over traditional imaging techniques:

• Non-invasive and passive: Relies on naturally occurring cosmic radiation, eliminating the need for artificial radiation sources.
• Deep Penetration: Capable of probing materials several metres thick, surpassing X-ray and gamma-ray limitations.
• High Contrast for Dense Materials: Sensitive to differences in atomic number, making it ideal for detecting heavy elements.
• Safe and Environmentally Friendly: No additional exposure to harmful radiation for operators or subjects.
• Versatile Application: Suitable for scientific, industrial, and security purposes alike.

Limitations and Challenges

Despite its promise, muon tomography also faces several technical and practical constraints:

• Low Muon Flux: Data collection requires long exposure times, often several days or weeks for high-resolution imaging.
• Complex Data Processing: Requires sophisticated algorithms and computational resources for accurate reconstruction.
• Detector Size and Cost: High-precision detectors and their installations can be expensive and logistically challenging.
• Environmental Noise: Background radiation and environmental factors can interfere with measurements, necessitating careful calibration.

Advances in Modern Muon Imaging

Recent progress in detector technology and computational physics has significantly improved the speed and resolution of muon tomography. Innovations include:

• Scintillating fibre detectors with high spatial resolution.
• Silicon photomultiplier (SiPM) arrays that enhance signal detection.
• Machine learning algorithms for faster image reconstruction and pattern recognition.
• Portable muography systems for field deployment in remote or hazardous environments.

In parallel, collaborative projects worldwide, such as Muon Radiography of Volcanoes (Mu-Ray) and ScanPyramids, have demonstrated the practical success of large-scale muographic imaging.

Significance and Future Prospects

Cosmic ray muon tomography represents a unique intersection of particle physics and applied imaging science. As detection technologies advance, it is expected to play an even greater role in global security, geoscience, and industrial monitoring.
Future research aims to:

• Reduce exposure times through enhanced detector efficiency.
• Integrate AI-based reconstruction techniques for real-time imaging.
• Develop compact, cost-effective systems for routine field applications.
