Asymmetrical Fold

An asymmetrical fold is a type of geological fold in which the two limbs or sides of the fold are inclined at different angles to the axial plane, resulting in an uneven or tilted appearance. Unlike a symmetrical fold, where both limbs dip equally in opposite directions, an asymmetrical fold shows a distinct difference in limb inclination, indicating unequal compressive forces or deformation during rock bending. These folds are common in regions that have undergone tectonic compression, particularly in mountain-building zones and sedimentary basins.

Definition and Basic Concept

In structural geology, a fold is a bend or curvature in rock layers that results from compressional stresses acting over long periods. When rocks are subjected to stress exceeding their elastic limit, they deform plastically, creating folds instead of fracturing. An asymmetrical fold arises when these compressional forces act more strongly from one side than the other, causing one limb to dip more steeply than the other.
The axial plane of an asymmetrical fold is inclined rather than vertical, and the hinge line—the line connecting the points of maximum curvature—also tends to be tilted. This inclination gives the fold a lopsided structure, reflecting the directional nature of the tectonic forces involved.

Structure and Characteristics

The main structural elements of an asymmetrical fold are similar to other folds but exhibit distinct relationships:

• Crest or Anticline – The upward arch or convex portion of the fold.
• Trough or Syncline – The downward, concave portion.
• Limbs – The sides of the fold that dip away from or toward the hinge. In asymmetrical folds, one limb is steeper than the other.
• Axial Plane – The imaginary plane dividing the fold into two halves. In an asymmetrical fold, this plane is inclined.
• Hinge Line – The line joining points of maximum curvature along the fold; usually non-horizontal.

Thus, the key identifying feature of an asymmetrical fold is unequal limb inclination and an inclined axial plane.

Formation and Causes

Asymmetrical folds typically develop under non-uniform compressional stress or when differential resistance exists within rock layers. The major causes include:

• Unequal Tectonic Pressure: When compressive forces act more strongly from one side, the rock layers bend unevenly.
• Variation in Rock Competence: Layers with different mechanical strengths (e.g., sandstone and shale) deform differently, leading to asymmetry.
• Pre-existing Structural Weakness: Faults or bedding irregularities influence how stress is distributed.
• Continued Deformation: Prolonged or progressive compression may cause one limb to tilt more as the fold tightens.

Such folds commonly occur in regions of orogenic activity (mountain formation), where rock strata are subjected to intense directional compression, such as in the Himalayas, Alps, or Andes.

Types and Classification

Asymmetrical folds can vary in geometry and orientation depending on the intensity and direction of the forces involved. Some key types include:

1. Inclined Fold – Both the axial plane and the hinge line are inclined; limbs dip in opposite directions but at unequal angles.
2. Overturned Fold – A more advanced stage of asymmetry in which both limbs dip in the same direction, but one limb is tilted beyond the vertical.
3. Recumbent Fold – An extreme form where the axial plane becomes nearly horizontal, and one limb may lie almost flat.

These types represent a continuum of deformation, from moderate asymmetry to complete overturning.

Geological Significance

Asymmetrical folds are crucial in geological studies for several reasons:

• Indicators of Stress Direction: The orientation of the axial plane and steeper limb reveals the dominant direction of compressional forces.
• Stratigraphic Interpretation: They help geologists understand the order and orientation of rock strata, especially when layers are tilted or repeated.
• Mineral and Hydrocarbon Exploration: Folds often act as structural traps for oil, gas, and minerals; asymmetrical folds can indicate potential accumulation zones.
• Landscape Formation: The surface expression of asymmetrical folds contributes to ridges, valleys, and cuesta landforms in folded mountain belts.
• Seismic and Structural Stability Studies: Understanding fold geometry aids in assessing geological hazards and designing stable engineering structures.

Examples and Occurrence

Asymmetrical folds are widely distributed across tectonically active and sedimentary regions. Notable examples include:

• Himalayan Fold Belt – Numerous asymmetrical and overturned folds formed due to the northward compression of the Indian Plate against the Eurasian Plate.
• Appalachian Mountains (USA) – Characterised by asymmetrical anticlines and synclines formed during the Appalachian orogeny.
• Alpine Region (Europe) – Exhibits complex asymmetrical and recumbent folds resulting from intense continental collision.
• Scottish Highlands – Contain Precambrian metamorphic rocks folded asymmetrically during ancient tectonic episodes.

In sedimentary basins, asymmetrical folds may also form due to differential subsidence or slumping of soft sediments.

Recognition in the Field

Geologists identify asymmetrical folds through a combination of field observations and structural analysis:

• Dip Measurements: Determining the angle and direction of dip on both limbs using a compass clinometer.
• Axial Plane Orientation: Mapping the tilt of the axial plane to distinguish symmetrical from asymmetrical structures.
• Cross-Sectional Analysis: Constructing geological cross-sections to visualise fold geometry.
• Aerial and Satellite Imagery: Detecting elongated ridges and valley patterns reflecting folded structures.

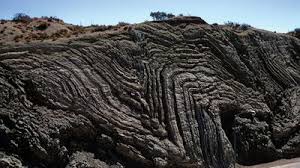

Outcrops often display tilted bedding planes, curved strata, and unequal limb thicknesses, all diagnostic features of asymmetrical folding.

Relation to Other Fold Types

The asymmetrical fold is one of several basic fold geometries, which together represent a continuum of rock deformation:

This sequence illustrates how increasing compressive stress leads from mild asymmetry to complete overturning.

Importance in Structural Geology

The study of asymmetrical folds contributes significantly to the understanding of crustal deformation and tectonic evolution. Their analysis helps in reconstructing the stress history of an area and in predicting subsurface geological conditions. In petroleum geology, the geometry of asymmetrical anticlines is particularly valuable, as they often form structural traps for hydrocarbons.
