Angle of Rest

The angle of rest, also referred to as the angle of repose, is a fundamental concept in the study of granular materials. It defines the maximum angle at which a pile of loose material remains stable without sliding or collapsing. This angle is crucial in engineering, geology, and material science, as it influences the design and analysis of slopes, embankments, hoppers, and storage piles.

Definition and Basic Concept

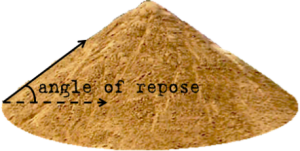

The angle of rest is the steepest angle relative to the horizontal plane at which material on a slope remains stationary. When the slope angle exceeds this limit, the material begins to slide or flow downward due to gravity overcoming internal frictional forces. It represents a balance between gravitational force pulling the particles downwards and the frictional resistance between the particles preventing movement.
Mathematically, the tangent of the angle of rest (θ) is equal to the coefficient of static friction (μ) between the particles:
tan θ = μ
This relation shows that materials with a higher coefficient of friction have a larger angle of rest, meaning they can form steeper piles.

Factors Affecting the Angle of Rest

Several variables influence the value of the angle of rest. These include:

• Particle Size and Shape: Coarse and angular particles tend to interlock more effectively, producing higher angles of rest. Fine, spherical particles, such as glass beads, have lower angles due to reduced interlocking and friction.
• Moisture Content: A small amount of moisture can increase cohesion between particles, thereby increasing the angle. However, excessive water reduces friction and can cause material flow.
• Density and Packing: Loosely packed materials usually exhibit lower angles, whereas compacted materials show higher angles of rest.
• Surface Roughness: The roughness of the surface on which the material rests also affects the stability of the pile.
• Vibration and External Disturbances: Vibrations or shaking can reduce interparticle friction and lower the angle of rest by allowing particles to rearrange into more stable configurations.

Measurement of the Angle of Rest

The angle of rest can be determined experimentally using various methods:

1. Fixed Funnel Method – Material is poured through a funnel onto a flat surface, forming a cone. The height and base diameter of the cone are measured, and the angle is calculated using trigonometric relations.
2. Tilting Box Method – Material is placed in a box, and the box is tilted gradually until the material begins to slide. The angle at which movement starts represents the angle of rest.
3. Rotating Cylinder Method – A cylindrical drum partially filled with the material is rotated slowly, and the angle of the slope formed inside the drum is measured.

The fixed funnel method is widely used for simple estimation, while the rotating cylinder method provides a more dynamic measure under controlled conditions.

Typical Values for Common Materials

The angle of rest varies widely among different substances. Some typical approximate values are:

• Dry sand: 30°–35°
• Gravel: 35°–40°
• Coal: 35°–45°
• Wheat grains: 25°–30°
• Wet clay: up to 45° or more

These values depend on the exact composition, moisture level, and particle shape of the material.

Applications and Engineering Significance

The angle of rest has numerous practical applications in civil, mechanical, agricultural, and mining engineering:

• Slope Stability Analysis: Engineers use it to determine the safe inclination of embankments, earth slopes, and retaining walls.
• Design of Silos and Hoppers: The discharge behaviour of granular materials in storage and transport systems is influenced by the angle of rest.
• Bulk Material Handling: Conveyor belts, bins, and chutes are designed with due consideration of the angle to avoid clogging and ensure smooth flow.
• Geological Studies: It aids in understanding natural phenomena such as landslides, avalanches, and dune formation.
• Pharmaceutical and Food Industries: Powder flowability and packing properties are evaluated through the angle of rest for process optimisation.

Relation to Other Angles in Granular Mechanics

The angle of rest is closely related to other mechanical parameters of granular materials:

• Angle of Repose: Often used interchangeably with angle of rest, though technically, the repose angle refers to the stable slope of a free-standing pile.
• Angle of Slide: The minimum slope angle at which material starts to move when subjected to external disturbance.
• Angle of Internal Friction: Represents the resistance between particles within a mass, a key factor in soil mechanics and geotechnical analysis.
