Thin-Film Transistor

A Thin-Film Transistor (TFT) is a type of field-effect transistor (FET) fabricated by depositing thin layers of semiconductor, dielectric, and metallic materials on a substrate. Unlike conventional transistors that are formed on bulk semiconductor wafers, TFTs are made on insulating surfaces such as glass, quartz, or flexible plastic. This technology is fundamental in modern display systems, including liquid crystal displays (LCDs), organic light-emitting diode (OLED) panels, and electronic paper displays, where they function as individual switching elements for each pixel.

Background and Development

The concept of thin-film transistors originated in the early 1960s when researchers began exploring alternatives to bulk silicon devices for use in large-area electronics. The first working TFT was demonstrated by Paul K. Weimer at RCA in 1962 using cadmium selenide (CdSe) as the semiconductor material. This marked a significant step towards the development of active matrix addressing systems used in displays.
In the 1970s and 1980s, the introduction of amorphous silicon (a-Si) as a semiconductor material revolutionised TFT fabrication. It enabled large-scale, low-cost production of transistors directly on glass substrates suitable for flat-panel displays. Later advances in polysilicon (poly-Si) and oxide semiconductors, such as indium gallium zinc oxide (IGZO), further improved device performance, allowing for higher mobility, better stability, and increased resolution in displays.
Today, TFTs represent one of the most widely used technologies in consumer electronics, forming the backbone of visual devices ranging from smartphones and televisions to digital cameras and laptops.

Structure and Working Principle

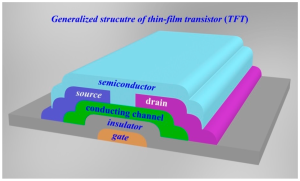

A Thin-Film Transistor consists of several layered components fabricated on an insulating substrate. The essential elements are:

• Substrate: Usually glass or flexible plastic that supports the transistor structure.
• Gate Electrode: Controls the current flow between the source and drain terminals.
• Gate Insulator: A thin dielectric layer that electrically isolates the gate from the semiconductor.
• Semiconductor Layer: The active channel through which charge carriers (electrons or holes) move.
• Source and Drain Electrodes: Provide the electrical connection for current to flow through the transistor.

The TFT operates based on the field-effect principle, where applying a voltage to the gate electrode induces an electric field across the insulator. This field modulates the conductivity of the semiconductor layer, allowing current to pass between the source and drain terminals when a sufficient gate voltage is applied. The transistor thus acts as an electronic switch or amplifier.

Types of Thin-Film Transistors

Thin-Film Transistors can be categorised based on the semiconductor material used and the device configuration:

• Amorphous Silicon TFT (a-Si TFT): The most common type used in LCD panels. It offers low manufacturing cost and good uniformity across large areas, though it suffers from relatively low carrier mobility.
• Polysilicon TFT (poly-Si TFT): Utilises polycrystalline silicon, providing higher mobility and faster switching speeds. These are often used in high-performance displays, such as those in smartphones and high-definition monitors.
• Oxide TFT: Employs oxide semiconductors such as IGZO, which offer higher electron mobility, transparency, and low power consumption. Oxide TFTs have become increasingly important in next-generation displays.
• Organic TFT (OTFT): Uses organic semiconductor materials that can be printed or deposited on flexible substrates, enabling lightweight and bendable electronic devices.

Manufacturing Process

TFT fabrication involves a series of thin-film deposition, photolithography, and etching steps similar to those used in integrated circuit production. The main techniques used to deposit thin films include:

• Chemical Vapour Deposition (CVD): Commonly used for depositing amorphous or polycrystalline silicon layers.
• Physical Vapour Deposition (PVD): Techniques such as sputtering are used to deposit metallic electrodes and oxide semiconductors.
• Spin Coating or Inkjet Printing: Applied in the case of organic TFTs for flexible and low-cost devices.

The manufacturing process is optimised for large-area substrates, allowing hundreds of thousands of TFTs to be produced simultaneously for display panels.

Applications in Display Technology

TFTs play a vital role in active matrix displays, where each pixel in the screen has its own dedicated transistor that controls the passage of light. This design contrasts with passive matrix displays, which rely on intersecting conductive lines and suffer from slower response times and poor image quality.
Major applications include:

• LCD Panels: TFT-LCDs are the dominant form of display used in televisions, computer monitors, and smartphones. Each pixel is controlled by a TFT that regulates the orientation of liquid crystal molecules, determining light transmission.
• OLED Displays: In OLED panels, TFTs provide precise control of current to organic light-emitting diodes, enhancing brightness and colour accuracy.
• Flexible and Transparent Displays: TFTs fabricated on plastic or transparent oxide substrates enable emerging technologies such as foldable screens and heads-up displays.
• Sensors and Imaging Devices: TFTs are used in X-ray imaging systems, fingerprint sensors, and electronic paper due to their ability to form large-area active matrices.

Performance Characteristics

The performance of a Thin-Film Transistor is determined by key electrical parameters, including:

• Field-Effect Mobility: Indicates how quickly charge carriers move through the semiconductor; higher mobility leads to faster switching.
• Threshold Voltage: The minimum gate voltage required to initiate conduction.
• On–Off Ratio: The ratio between the current in the ‘on’ state and the ‘off’ state; a higher ratio ensures clearer image contrast in displays.
• Subthreshold Slope: Determines how sharply the transistor switches between on and off states.
• Stability and Lifetime: Factors such as temperature, light exposure, and electrical stress can degrade performance over time.

Advancements in materials and fabrication have steadily improved these characteristics, enabling thinner, more efficient, and more responsive display technologies.

Advantages and Limitations

Advantages:

• Enables high-resolution and fast-refresh displays.
• Compatible with large-area and flexible substrates.
• Relatively low-cost mass production for a-Si TFTs.
• High transparency possible with oxide-based TFTs.

Limitations:

• Limited carrier mobility in amorphous silicon restricts speed.
• Sensitivity to environmental factors such as moisture and temperature.
• Complex fabrication process for high-performance materials like poly-Si.
• Degradation under prolonged electrical or light stress can reduce lifetime.

Emerging Trends and Future Prospects

Research in thin-film transistor technology continues to progress towards flexible electronics, wearable devices, and transparent circuits. Developments in oxide semiconductors and organic materials are enabling ultra-thin, low-power displays that can be curved, folded, or rolled.
The integration of TFTs with sensors and circuits on flexible substrates promises new applications in healthcare monitoring, smart textiles, and next-generation communication devices. Moreover, ongoing efforts to combine TFT technology with nanomaterials such as graphene and carbon nanotubes aim to achieve unprecedented performance in speed, transparency, and energy efficiency.
