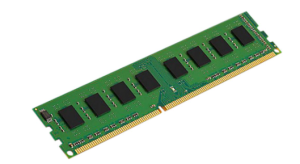

Random Access Memory

Random Access Memory (RAM) is a fundamental component of computer systems, serving as the main memory where data and programs are temporarily stored during processing. It is termed “random access” because any memory location can be accessed directly and almost instantaneously, regardless of its physical position in memory. RAM plays a crucial role in determining the speed, efficiency, and performance of a computer or digital device.

Definition and Basic Concept

Random Access Memory (RAM) is a type of volatile memory that stores data temporarily while a computer is powered on. It provides the processor (CPU) with fast, direct access to data and instructions needed for active tasks. When the system is turned off, the data stored in RAM is lost — distinguishing it from non-volatile storage devices like hard drives or solid-state drives (SSDs).
In simpler terms, RAM acts as the working space of a computer, holding the information that the CPU is currently using, so it can retrieve it quickly without accessing slower storage media.

Characteristics of RAM

1. Volatility: Data in RAM is retained only while the computer is powered on. It is erased when the system shuts down or restarts.
2. High Speed: RAM operates much faster than permanent storage, allowing the CPU to process instructions without delay.
3. Random Access: Any memory cell can be accessed directly and independently, unlike sequential storage devices (e.g., magnetic tapes).
4. Temporary Storage: Stores the operating system, applications, and active files during program execution.
5. Read/Write Capability: RAM can be both read from and written to, enabling dynamic data processing.
6. Measured in Capacity and Speed: RAM capacity is measured in gigabytes (GB), while its performance depends on speed (MHz) and latency.

Types of RAM

RAM is broadly classified into two main types: Static RAM (SRAM) and Dynamic RAM (DRAM). Each type has distinct features, advantages, and uses.

1. Static Random Access Memory (SRAM)

• Description: SRAM stores data using a flip-flop circuit made of transistors. It retains stored data as long as power is supplied, without needing periodic refreshing.
• Features:
  • Very fast access time.
  • More expensive and consumes more power than DRAM.
  • Commonly used for cache memory inside CPUs.
• Advantages:
  • High speed and reliability.
  • No need for constant refreshing.
• Disadvantages:
  • High cost per bit.
  • Larger physical size and more power consumption.
• Applications:
  • Processor caches (L1, L2, L3).
  • Networking equipment and high-speed applications.

2. Dynamic Random Access Memory (DRAM)

• Description: DRAM stores data using tiny capacitors that hold electrical charges. These charges leak over time, so the cells must be refreshed thousands of times per second to retain data.
• Features:
  • Slower than SRAM but much cheaper.
  • Denser, allowing greater storage capacity.
• Advantages:
  • Low cost and high capacity.
  • Compact structure.
• Disadvantages:
  • Requires continuous refreshing.
  • Slightly slower access times.
• Applications:
  • Main memory (system RAM) in computers and mobile devices.

Subtypes of DRAM

Over time, several enhanced forms of DRAM have been developed to increase speed and efficiency.

1. FPM DRAM (Fast Page Mode DRAM): Early DRAM used in the 1980s–1990s, capable of reading data faster within the same memory page.
2. EDO DRAM (Extended Data Out DRAM): Improved version of FPM with overlapping read cycles, increasing speed.
3. SDRAM (Synchronous DRAM): Synchronised with the CPU clock, allowing faster data transfer. Became standard in the late 1990s.
4. DDR SDRAM (Double Data Rate SDRAM): Transfers data on both the rising and falling edges of the clock signal, effectively doubling speed.
   • Variants include DDR, DDR2, DDR3, DDR4, and DDR5, each offering higher bandwidth and lower power consumption than its predecessor.
5. RDRAM (Rambus DRAM): A high-performance type developed by Rambus Inc., briefly popular in the early 2000s but later replaced by DDR technologies.
6. VRAM (Video RAM): Specialised DRAM used for graphics processing, allowing simultaneous read and write operations for video data.

How RAM Works

1. When a computer is powered on, the operating system (OS) loads from the hard drive into RAM.
2. When an application is opened, its executable code and data are copied into RAM.
3. The CPU accesses these instructions directly from RAM for rapid processing.
4. When the application closes, or the system shuts down, RAM is cleared, and the cycle restarts with the next boot.

Thus, the speed and size of RAM directly influence system performance — more RAM allows more applications to run simultaneously without slowing down.

Functions of RAM in a Computer System

1. Temporary Data Storage: Holds programs and data currently being used.
2. Program Execution: Provides the CPU with quick access to instructions and variables.
3. Data Transfer: Acts as an intermediary between the processor and slower storage devices.
4. Multitasking Support: Allows multiple processes to run smoothly without lag.
5. Caching and Buffering: Enhances speed in data-intensive operations like video rendering and gaming.

Difference Between RAM and ROM

Factors Affecting RAM Performance

1. Clock Speed (MHz or GHz): Determines how fast data can be accessed and transferred.
2. Memory Bandwidth: Measured in MB/s or GB/s, indicating data transfer capacity.
3. Latency (CL – CAS Latency): The delay between a command and data availability. Lower latency means faster response.
4. Dual/Quad Channel Architecture: Multiple memory channels increase bandwidth and overall speed.
5. Capacity (Size): More RAM allows the system to handle larger workloads.

Applications of RAM

• Computers and Laptops: For system memory and cache.
• Smartphones and Tablets: Used for multitasking and app execution.
• Gaming Consoles: Ensures smooth gameplay and quick loading.
• Embedded Systems: Found in routers, printers, and IoT devices.
• Servers and Workstations: Require large RAM capacities for parallel data processing.

Advancements in RAM Technology

Recent innovations focus on improving speed, energy efficiency, and scalability:

• DDR5 RAM: Offers higher bandwidth (up to 6400 MT/s) and lower voltage than DDR4.
• LPDDR (Low Power DDR): Optimised for mobile and portable devices.
• 3D-Stacked DRAM: Enhances performance by vertically stacking multiple memory layers.
• Non-Volatile RAM (NVRAM): Combines RAM speed with permanent storage capabilities (used in high-end computing).

Importance of RAM in System Performance

The quantity and quality of RAM directly affect system performance:

• Low RAM → System slows down, frequent disk swapping.
• Sufficient RAM → Smooth multitasking, faster load times.
• High-speed RAM → Better gaming, rendering, and data processing performance.

RAM thus acts as the bridge between the ultra-fast processor and the slower storage drives, making it an indispensable part of any modern computing device.
