Long-term Evolution

Long-Term Evolution (LTE) is a standard for wireless broadband communication developed to provide high-speed data transmission for mobile devices and data terminals. It represents a major advancement in mobile telecommunications, succeeding third-generation (3G) technologies and laying the foundation for fifth-generation (5G) networks. Designed and maintained by the 3rd Generation Partnership Project (3GPP), LTE enhances network capacity, speed, and efficiency by employing modern digital modulation techniques and optimised network architecture.

Background and Development

The concept of LTE emerged in the early 2000s, driven by the need for faster, more efficient mobile data transmission. The earlier 3G technologies—such as Universal Mobile Telecommunications System (UMTS) and High-Speed Packet Access (HSPA)—were limited in speed and capacity due to circuit-switched infrastructure and spectrum constraints.
In 2004, 3GPP initiated the LTE project to create a new standard that would provide high-speed, all-IP (Internet Protocol) mobile communication. The first commercial LTE networks were launched in 2009, and since then, LTE has become the dominant global mobile broadband technology, deployed across more than 200 countries.
LTE is often referred to as 4G LTE, although initial LTE versions did not fully meet the International Telecommunication Union (ITU)’s technical requirements for 4G. The enhanced version, LTE-Advanced (LTE-A), introduced later, satisfies these standards and offers true 4G performance.

Key Objectives

The LTE system was designed with several strategic goals:

• To provide higher data rates and lower latency compared to 3G systems.
• To improve spectral efficiency (better use of available frequency spectrum).
• To enable a flat, all-IP network architecture for simpler, faster communication.
• To support seamless mobility and interoperability with existing 3G and 2G networks.
• To allow flexible bandwidth allocation across different frequency bands.

Technical Features

LTE introduces several innovative technical features that distinguish it from previous generations:
1. Radio Access Technology (E-UTRA): LTE employs Orthogonal Frequency Division Multiple Access (OFDMA) for downlink (base station to device) and Single Carrier Frequency Division Multiple Access (SC-FDMA) for uplink (device to base station).

• OFDMA divides the radio spectrum into many narrow subcarriers, allowing efficient parallel data transmission.
• SC-FDMA reduces power consumption on user devices, improving battery life.

2. High Data Rates:

• Downlink peak rate: up to 300 Mbps (in LTE-Advanced, exceeding 1 Gbps).
• Uplink peak rate: up to 75 Mbps (in LTE-Advanced, exceeding 500 Mbps).
• Typical latency: less than 10 milliseconds, enabling near real-time applications.

3. Spectrum Flexibility: LTE supports scalable bandwidths ranging from 1.4 MHz to 20 MHz, enabling deployment across various frequency allocations worldwide (e.g., 700 MHz, 1800 MHz, 2300 MHz, and 2600 MHz).
4. Multiple Input Multiple Output (MIMO): LTE employs MIMO antenna technology, where multiple antennas at both transmitter and receiver ends increase data throughput and reliability without additional bandwidth.
5. All-IP Network Architecture: Unlike earlier cellular systems, LTE uses a packet-switched architecture (Evolved Packet Core, or EPC) that transmits all data—including voice—over Internet Protocol. This allows faster and more efficient routing and supports services like Voice over LTE (VoLTE).
6. Quality of Service (QoS): LTE provides dynamic management of bandwidth and prioritisation of data traffic to ensure consistent performance for services like streaming, gaming, and VoIP.

Network Architecture

The LTE network architecture, known as the Evolved Packet System (EPS), consists of two main components:

1. E-UTRAN (Evolved Universal Terrestrial Radio Access Network):
   • Comprises eNodeBs (base stations) that handle radio communication with user equipment (UE).
   • eNodeBs manage mobility, handovers, and radio resource allocation autonomously.
2. Evolved Packet Core (EPC):
   • Mobility Management Entity (MME): Handles user authentication, session management, and mobility tracking.
   • Serving Gateway (S-GW): Routes data packets between eNodeBs and the core network.
   • Packet Data Network Gateway (P-GW): Connects users to external networks such as the Internet.
   • Home Subscriber Server (HSS): Stores user information and subscription data.

This flat, simplified architecture reduces network delays and operational complexity compared to legacy systems.

Evolution and Enhancements

LTE-Advanced (LTE-A): Introduced in 3GPP Release 10 (2011), LTE-A brought major improvements including:

• Carrier Aggregation: Combines multiple frequency bands to increase total bandwidth and data rates.
• Enhanced MIMO: Up to 8×8 antenna configurations.
• Relay nodes and small cells: Improve coverage and capacity in dense areas.
• Coordinated Multipoint (CoMP): Enhances performance at cell edges through cooperation among base stations.

LTE-Advanced Pro: Launched in 3GPP Release 13, it bridges the gap between LTE-A and 5G by introducing features like:

• Massive MIMO and advanced beamforming.
• Unlicensed spectrum usage (LTE-U and LAA).
• Machine-type communication (MTC) for Internet of Things (IoT) applications.

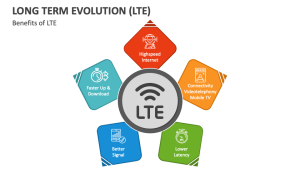

Advantages of LTE

• High-speed connectivity suitable for HD video streaming, gaming, and mobile internet.
• Low latency, supporting real-time communication and IoT devices.
• Efficient spectrum usage, making it cost-effective for operators.
• Global interoperability, allowing seamless roaming across networks.
• Backward compatibility with 2G and 3G networks.

Limitations

• Infrastructure cost: LTE deployment requires significant investment in network equipment.
• Spectrum fragmentation: Different regions use different frequency bands, complicating device compatibility.
• Battery consumption: High-speed data operations can drain device batteries quickly.
• Coverage gaps: Rural and remote areas may still lack LTE connectivity.

Applications and Impact

LTE has transformed global communication and digital services:

• Mobile broadband: Enables fast, reliable Internet access on smartphones, tablets, and laptops.
• Voice over LTE (VoLTE): Provides high-definition voice quality over IP networks.
• Internet of Things (IoT): Supports machine-to-machine communication for smart cities, agriculture, and logistics.
• Emergency services: Enhances communication reliability for disaster management and public safety.
• Enterprise solutions: Facilitates remote work, video conferencing, and cloud computing.

Transition to 5G

LTE continues to serve as the backbone for 5G networks, providing widespread coverage and fallback connectivity. Many 5G deployments are based on Non-Standalone (NSA) architecture, which uses existing LTE infrastructure for control signalling while adding 5G New Radio (NR) for data.
LTE’s technologies—such as carrier aggregation, massive MIMO, and low latency—have directly influenced 5G design, ensuring a seamless transition toward next-generation connectivity.
