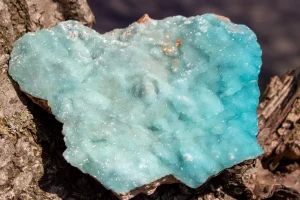

Hemimorphite

Hemimorphite is a hydrated zinc silicate mineral, known for its unique crystallography, role in zinc ore deposits, and appeal to mineral collectors. Its distinctive morphology, secondary origin, and occasional utility as a minor zinc ore make it an interesting subject in mineralogy, geology, and gemology.

Basic Composition and Nomenclature

Hemimorphite has the chemical formula
Zn4Si2O7(OH)2⋅H2O\mathrm{Zn_4Si_2O_7(OH)_2 \cdot H_2O}Zn4​Si2​O7​(OH)2​⋅H2​O
which can be written as Zn₄Si₂O₇(OH)₂·H₂O. This formula shows that hemimorphite is a hydrated zinc silicate hydroxide: it includes silicon, zinc, oxygen, hydroxide groups, and water molecules incorporated into the crystal lattice.
Originally, hemimorphite and a zinc carbonate mineral, smithsonite, were both referred to by the name calamine. But as mineralogy advanced in the 19th century, these two species were distinguished and given separate names. Hemimorphite was formally named in 1853, the name reflecting its characteristic of hemimorphism: crystals that terminate with different forms on opposite ends.
Hemimorphite is classified in the silicate mineral class, more precisely among the sorosilicates (or grouped silicates), because of the presence of Si₂O₇ groups in its structure.

Crystallography and Morphology

Hemimorphite crystallises in the orthorhombic system, with space group Imm2. Its unit cell parameters are approximately a=8.37a = 8.37a=8.37 Å, b=10.73b = 10.73b=10.73 Å, and c=5.155c = 5.155c=5.155 Å.
The defining trait—hemimorphism—means that crystals often have asymmetrical terminations: one end of a crystal may be blunt or pedion-like, while the opposite end is more pyramidal. This phenomenon is relatively rare among minerals. Many hemimorphite specimens, however, do not show perfectly developed hemimorphic terminations, because crystals grow outward and the orientation can dominate in one direction.
Typical habits and morphologies of hemimorphite include:

• Tabular, flattened crystals
• Radiating aggregates or fibers
• Botryoidal (grape-like) or globular crusts
• Massive or granular forms
• Stalactitic or encrusting coatings

Because many of its occurrences are secondary and form in cavities or along fractures, many specimens are crusts or coatings rather than isolated, perfect crystals.
The crystal structure involves Zn-centred tetrahedra (ZnO₃OH groups) and Si₂O₇ double tetrahedra, interconnected and hosting water molecules in voids. The zinc-bearing tetrahedra align in a consistent direction, which contributes to the polarization in the crystal and the hemimorphic habit.

Physical and Optical Properties

Here is a summary of its key physical and optical attributes:

Because of the perfect cleavage in the {110} plane and moderate hardness, hemimorphite is vulnerable to scratching or breakage if handled roughly. Some of its more aesthetic crystal specimens are valued collectible pieces, especially when they display pleasing colour and form.

Geological Occurrence and Mineral Associations

Hemimorphite is generally a secondary mineral, forming by alteration processes in the oxidation zones of zinc-bearing ore deposits. It is commonly associated with primary zinc minerals such as sphalerite (ZnS) and also with secondary zinc minerals like smithsonite (ZnCO₃), willemite (Zn₂SiO₄), and others.
Typical geological and environmental settings include:

• Gossans or iron caps: In weathered sulphide ore zones, the upper part often becomes oxidised, and primary sulphide zinc minerals degrade. Hemimorphite can precipitate within cracks, cavities, or as encrustations.
• Replacement zones: Hemimorphite may replace primary minerals or fill vacuities in host rock.
• Hydrothermal alteration: In some cases, metasomatic fluids can mobilise silicon, zinc, and water to form hemimorphite in veins or alteration halos.

Because it forms under relatively low-temperature, near-surface conditions, hemimorphite is commonly found along with oxides, carbonates, and silicates that result from the breakdown of primary ore bodies.
Some of the well-known localities for attractive hemimorphite specimens include (but are not limited to) areas in Mexico (notably Durango and Chihuahua), Belgium-Germany border (Vieille Montagne, Kelmis), Sardinia (Italy), Thailand, parts of the United States (Missouri, Arizona, Colorado), Namibia, and China.

Economic Role and Uses

Though hemimorphite is not among the top zinc ores in most large mining operations, it can serve as a minor zinc ore in local or small-scale contexts, especially in the oxidised zones where primary sulphide ores have been depleted or leached. Its zinc content can reach up to about 54 % by weight (in terms of elemental zinc equivalent in ideal cases).
Its principal value, however, lies in the collector and gem markets. Some qualities of hemimorphite are cut as cabochons, beads, or ornamental pieces. Blue or bluish varieties, or those forming radiating fibers, are particularly prized. Although it is rarely faceted, transparent or gem-quality material from certain localities (especially Mexico) has been cut. Because of its modest hardness and cleavage, it is used more often in pendants, earrings, and brooches rather than rings or bracelets, where impact or wear is more likely.
Another feature of hemimorphite is its electric / pyroelectric behaviour. Because of its non-centrosymmetric (polar) structure, it may generate small electrical charges when its temperature changes. This characteristic is more of scientific interest than wide practical application, though in principle it could be relevant to studies of polar crystals and sensor technologies.
In the past, both hemimorphite and smithsonite (the historically paired “calamine” minerals) were used in medicinal preparations—calamine lotion (for skin irritation, itching) was once sourced from these minerals. However, this is more a historic or niche use rather than a modern industrial application.

Advantages, Constraints and Challenges

Advantages / Positive Aspects

• As a secondary mineral, it can be mined in oxidised zones where primary ore is depleted.
• Its visually attractive forms (colour and habit) make it valuable to collectors and as decorative material.
• The fact that it can indicate the presence of underlying zinc-bearing systems gives it some importance in exploration contexts.

Constraints / Limitations

• Hemimorphite is relatively soft (4.5–5 on Mohs scale) and has perfect cleavage, making it susceptible to mechanical damage.
• Because it is a secondary mineral, it is not always present in large, continuous bodies suitable for large-scale mining.
• Its solubility and instability in acidic environments make it vulnerable to dissolution in certain conditions.
• The pyroelectric effect is weak and not easily harnessed for large-scale technology.

Identification and Distinction from Similar Minerals

Because hemimorphite was historically lumped with smithsonite under the name calamine, distinguishing them is important in mineralogy:

• Acid test: Smithsonite (a carbonate) effervesces in dilute hydrochloric acid, whereas hemimorphite does not (or only very weakly) under typical conditions.
• Hardness: Hemimorphite is generally harder (≈ 4.5–5) compared to smithsonite (≈ 4 to 4.5).
• Crystal habit / morphology: Hemimorphite shows hemimorphic crystals, or fibrous, encrusting or radial habits; smithsonite tends to more globular or stalactic habits.
• Optical / refractive properties: Differences in refractive indices and birefringence may help in thin section or gemological analysis.
• Density / specific gravity: Slight differences may be measurable.

Other minerals sometimes associated in oxidised zinc zones include willemite, cerussite, anglesite, jarosite, and more — careful mineralogical testing (chemical, optical, XRD) helps resolve identity.
