C-Band Polarimetric Doppler Radar System

A C-Band Polarimetric Doppler Radar System is an advanced meteorological radar used for observing and analysing atmospheric phenomena, particularly precipitation, clouds, and severe weather events. Operating within the C-band frequency range (approximately 4 to 8 GHz, commonly around 5.3 GHz), this radar combines the capabilities of Doppler and dual-polarisation technologies to provide detailed information about the movement, size, shape, and type of hydrometeors such as raindrops, hailstones, and snowflakes. It plays a crucial role in modern weather forecasting, hydrological studies, and climate research.

Background and Development

The development of radar meteorology began during the Second World War, when radar systems first detected precipitation as interference in military operations. Over the decades, meteorologists and engineers refined radar technologies for dedicated weather observation.
By the mid-20th century, the Doppler radar was introduced, exploiting the Doppler effect—a shift in the frequency of returned radar signals caused by the motion of targets. This allowed measurement of wind velocity within storms, a significant advancement for forecasting severe weather such as tornadoes and cyclones.
The C-band radar, operating at wavelengths of about 5 to 6 centimetres, became popular for meteorological use because it offered an optimal balance between range and sensitivity. Unlike S-band radars (used for long-range observation) and X-band radars (used for short-range, high-resolution data), C-band radars are ideal for regional monitoring, particularly in tropical and mid-latitude regions.
In the late 20th century, the introduction of polarimetric radar technology marked another major milestone. By transmitting and receiving electromagnetic waves in both horizontal and vertical polarisations, these radars could infer the shape, orientation, and phase of precipitation particles. The integration of Doppler and polarimetric features into the C-band system has since produced one of the most versatile tools for meteorological observation.

Working Principle

The C-Band Polarimetric Doppler Radar System operates by transmitting pulses of microwave energy toward the atmosphere and analysing the returned (backscattered) signals from hydrometeors.
The Doppler function measures the radial velocity of moving targets by detecting the frequency shift between transmitted and received signals. This enables the radar to determine the direction and speed of wind within weather systems.
The polarimetric capability involves transmitting electromagnetic waves in two orthogonal polarisations—horizontal (H) and vertical (V). By comparing the returned signals in both planes, the radar can deduce the shape and orientation of particles, which in turn indicates the type of precipitation.
Key polarimetric parameters include:

• Differential Reflectivity (Z_DR): The ratio of reflected power between horizontal and vertical polarisations; used to identify raindrop shape and type.
• Correlation Coefficient (ρ_HV): Measures the similarity between H and V signals; lower values suggest mixed-phase precipitation or non-meteorological echoes.
• Specific Differential Phase (K_DP): Represents the phase shift difference between H and V polarisations; helps estimate rainfall rate and attenuation.
• Linear Depolarisation Ratio (LDR): Indicates non-spherical or irregular targets such as hail or debris.

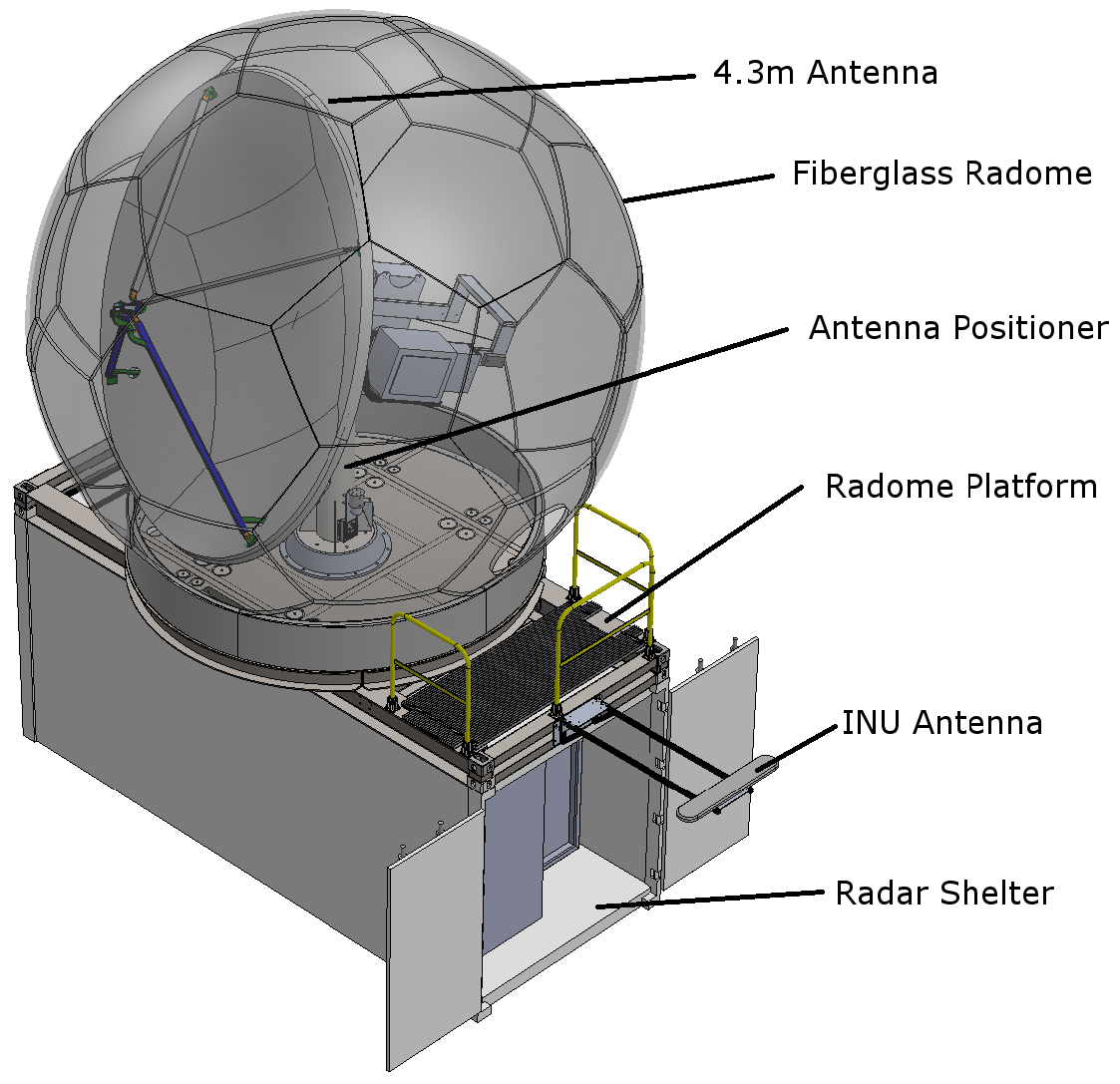

System Components

A typical C-Band Polarimetric Doppler Radar System consists of several interlinked components:

• Transmitter: Generates high-frequency microwave pulses using devices like magnetrons or klystrons.
• Antenna: Usually a parabolic dish that both transmits and receives signals; it rotates mechanically to scan the atmosphere in azimuth and elevation.
• Receiver: Detects and amplifies the weak return signals reflected from atmospheric targets.
• Signal Processor: Converts the received data into quantitative meteorological parameters, filtering out noise and clutter.
• Control and Display Unit: Allows operators to monitor, control, and visualise radar products, including reflectivity maps and velocity fields.
• Data Communication System: Integrates the radar network with forecasting centres, enabling real-time data sharing.

Advantages of Polarimetric Doppler Technology

The dual-polarisation and Doppler capabilities significantly enhance the performance and accuracy of C-band radar systems. Some of the key advantages include:

• Improved Precipitation Classification: Ability to distinguish between rain, snow, hail, and mixed-phase precipitation.
• Enhanced Rainfall Estimation: Use of parameters such as K_DP and Z_DR improves quantitative precipitation estimation (QPE).
• Detection of Non-Meteorological Echoes: Better identification of ground clutter, birds, or insects that can interfere with radar measurements.
• Severe Weather Detection: Helps identify hail cores, tornado debris, and mesocyclone rotation patterns.
• Dual-Polarisation Correction: Reduces errors caused by attenuation and beam blockage, especially in heavy rainfall.

Applications

C-Band Polarimetric Doppler Radars are widely used by meteorological agencies, research institutions, and disaster management authorities. Their applications include:

• Weather Forecasting: Monitoring convective storms, cyclones, and frontal systems in real time.
• Flood Warning Systems: Providing accurate rainfall estimates for hydrological models and early warning systems.
• Aviation Meteorology: Detecting wind shear, microbursts, and severe turbulence around airports.
• Climate Research: Analysing cloud microphysics and precipitation dynamics for climate modelling.
• Agricultural Planning: Monitoring rainfall distribution and drought assessment.
• Disaster Management: Supporting early warning and response during extreme weather events.

Limitations

Despite its versatility, the C-Band Polarimetric Doppler Radar System has certain limitations:

• Attenuation: C-band frequencies are more susceptible to signal weakening in heavy rainfall compared to S-band radars.
• Range Limitations: Typical operational range is about 200–250 km, beyond which data quality deteriorates.
• Beam Blockage: Terrain features such as mountains can obstruct radar beams.
• Maintenance Requirements: Precision alignment and calibration are crucial for accurate polarimetric measurements.

Deployment and Global Examples

C-Band Polarimetric Doppler Radars are widely deployed worldwide. In India, the India Meteorological Department (IMD) operates several such radars in its network for real-time weather monitoring under the Doppler Weather Radar (DWR) programme. Systems are installed in coastal and inland locations, such as Chennai, Mumbai, and Patna, providing crucial data for cyclone and monsoon monitoring.
Globally, meteorological services in countries such as the United Kingdom, Japan, Australia, and the United States utilise similar systems. The UK Met Office, for instance, employs C-band dual-polarisation radars to enhance national weather surveillance and hydrological forecasting.

Technological Advances and Future Outlook

Ongoing research aims to further improve radar accuracy, resolution, and data processing speed. Developments include:

• Phased Array Technology: Enables electronic steering of radar beams for faster scanning and improved temporal resolution.
• Networked Radar Systems: Combining data from multiple radars for three-dimensional coverage and redundancy.
• Artificial Intelligence Integration: Machine learning algorithms assist in classifying precipitation types and detecting severe weather signatures.
• Miniaturised Radars: Portable C-band systems for localised weather studies and unmanned aerial applications.
