Agni-IV (missile)

Agni-IV is a medium-range ballistic missile (MRBM) developed by the Defence Research and Development Organisation (DRDO) of India. It forms part of India’s Agni series of strategic missiles and represents a significant advancement in the nation’s indigenous missile technology. Designed for nuclear as well as conventional payloads, Agni-IV enhances India’s deterrence capabilities within the broader framework of its strategic defence doctrine.

Background and Development

The Agni series was conceptualised under India’s Integrated Guided Missile Development Programme (IGMDP), initiated in 1983 under the leadership of Dr. A. P. J. Abdul Kalam. The programme aimed to achieve self-reliance in missile technology through a family of guided systems for different military applications.
After the successful induction of Agni-I, Agni-II, and Agni-III, India began work on Agni-IV (earlier referred to as Agni-II Prime) to bridge the range gap between the medium and intermediate classes of ballistic missiles. Development was undertaken by DRDO’s Advanced Systems Laboratory (ASL) in Hyderabad, with contributions from other research centres such as the Research Centre Imarat (RCI) and Defence Research and Development Laboratory (DRDL).
The missile was designed to provide greater accuracy, manoeuvrability, and mobility compared to earlier variants, with improved composite materials and navigation systems ensuring enhanced reliability.

Design and Technical Specifications

Agni-IV incorporates several cutting-edge technologies that mark a progression over its predecessors. It is a two-stage, solid-fuelled missile designed for quick deployment and high accuracy.
Key technical parameters include:

• Type: Surface-to-surface ballistic missile
• Length: Approximately 20 metres
• Diameter: 1.0 metre
• Launch Weight: Around 17 tonnes
• Range: 3,500 to 4,000 kilometres
• Propulsion: Two-stage solid propellant
• Warhead Capacity: 1,000 kg (nuclear or conventional)
• Guidance System: Ring Laser Gyro-based Inertial Navigation System (RINS) complemented by a Micro Inertial Navigation System (MINS) and satellite-based corrections.
• Accuracy (CEP): Less than 100 metres, indicating a high degree of precision.

The missile’s airframe is constructed from advanced composite materials, reducing its overall weight while enhancing strength and resistance to thermal stresses during re-entry. The re-entry vehicle (RV) is equipped with carbon-carbon composite heat shields that can withstand temperatures of up to 3,000°C, ensuring structural integrity upon atmospheric re-entry.

Launch System and Mobility

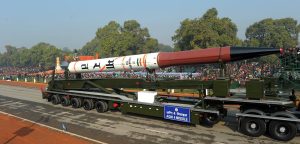

Agni-IV is road and rail mobile, designed for deployment from a road-mobile launcher based on an eight-wheeled transporter-erector-launcher (TEL). The mobility of the launch platform increases survivability by allowing rapid relocation, making the system less vulnerable to pre-emptive strikes.
The missile can be launched from multiple terrains, demonstrating India’s strategic flexibility. Its canisterised configuration also enables reduced preparation time and improved operational readiness.

Flight Tests and Evaluation

The development of Agni-IV involved a series of rigorous test launches to validate its design and performance:

• First Test: Conducted on 15 November 2011 from Wheeler Island (now Dr. Abdul Kalam Island) off the Odisha coast. The test was successful, with the missile achieving its target range and demonstrating all mission objectives.
• Second Test: Carried out on 19 September 2012, reaffirming accuracy and stability.
• Third Test: On 20 January 2014, Agni-IV was successfully tested again, with telemetry and radar systems tracking its trajectory throughout the flight.
• Subsequent Tests: Repeated launches in December 2014, January 2017, and December 2018 further confirmed its operational reliability and readiness for induction into the Strategic Forces Command (SFC).

Each test demonstrated consistent accuracy, robust guidance, and stable re-entry characteristics, underscoring the maturity of India’s missile design and production capabilities.

Strategic Role and Operational Significance

Agni-IV occupies a crucial position within India’s nuclear triad, strengthening the country’s credible minimum deterrence policy. Its range allows it to cover strategic targets across large parts of Asia, including potential adversaries’ high-value installations, thereby enhancing regional deterrence stability.
It bridges the operational gap between the shorter-range Agni-II (2,000 km) and the longer-range Agni-V (over 5,000 km). With this capability, India can effectively project power while maintaining its declared “No First Use (NFU)” nuclear doctrine.
Key strategic features include:

• Extended reach: Covers key regional targets without leaving Indian territory.
• High accuracy: Enables precise strikes with minimal collateral damage.
• Rapid deployment: Canisterised storage and road mobility ensure quick launch capability.
• Reduced maintenance: Solid-fuel propulsion simplifies storage and handling requirements.

Technological Innovations

Agni-IV introduced several technological enhancements compared to its predecessors:

• Composite Rocket Motors: Reducing mass while increasing thrust efficiency.
• Advanced Avionics: Fully digital control system for improved stability and real-time corrections.
• Dual Redundant Navigation: Combination of RINS and MINS for higher precision.
• Re-entry Vehicle Technology: Superior thermal shielding and aerodynamic design for high-speed descent.
• Canister Launch System: Enables secure, quick-response launches and extended shelf life.

These innovations collectively position Agni-IV as one of the most advanced missiles in India’s strategic arsenal.

International and Strategic Implications

The successful development of Agni-IV marked India’s entry into the class of nations with medium-to-intermediate range ballistic missile capabilities. It underscored India’s commitment to maintaining strategic autonomy and technological self-reliance in defence.
From a geopolitical perspective, the missile enhances India’s deterrence posture within the South Asian region and serves as a stabilising factor in maintaining power balance vis-à-vis neighbouring states with comparable missile programmes. It also demonstrates India’s compliance with international norms, as its development aligns with defensive deterrence rather than offensive expansion.

Comparison with Other Agni Missiles

This table shows Agni-IV’s intermediate position in range and capability, offering flexibility for both tactical and strategic deterrence missions.

Induction and Operational Status

Following multiple successful trials, Agni-IV was officially declared ready for induction into the Strategic Forces Command (SFC), the operational arm of India’s nuclear command structure. Its inclusion strengthens the country’s second-strike capability, reinforcing its deterrence posture and ensuring survivability in potential conflict scenarios.
